# Serious Attention #
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
There are 7 options models in this products listing, the Prices and accessories is much different
Please check it carefully and select the suitable models when you place orders. Thanks.
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Precision Electric Screwdriver handle/28/36/62 /120 in 1 set S2 Alloy Steel Bit Screwdriver Set Repair Power Tools

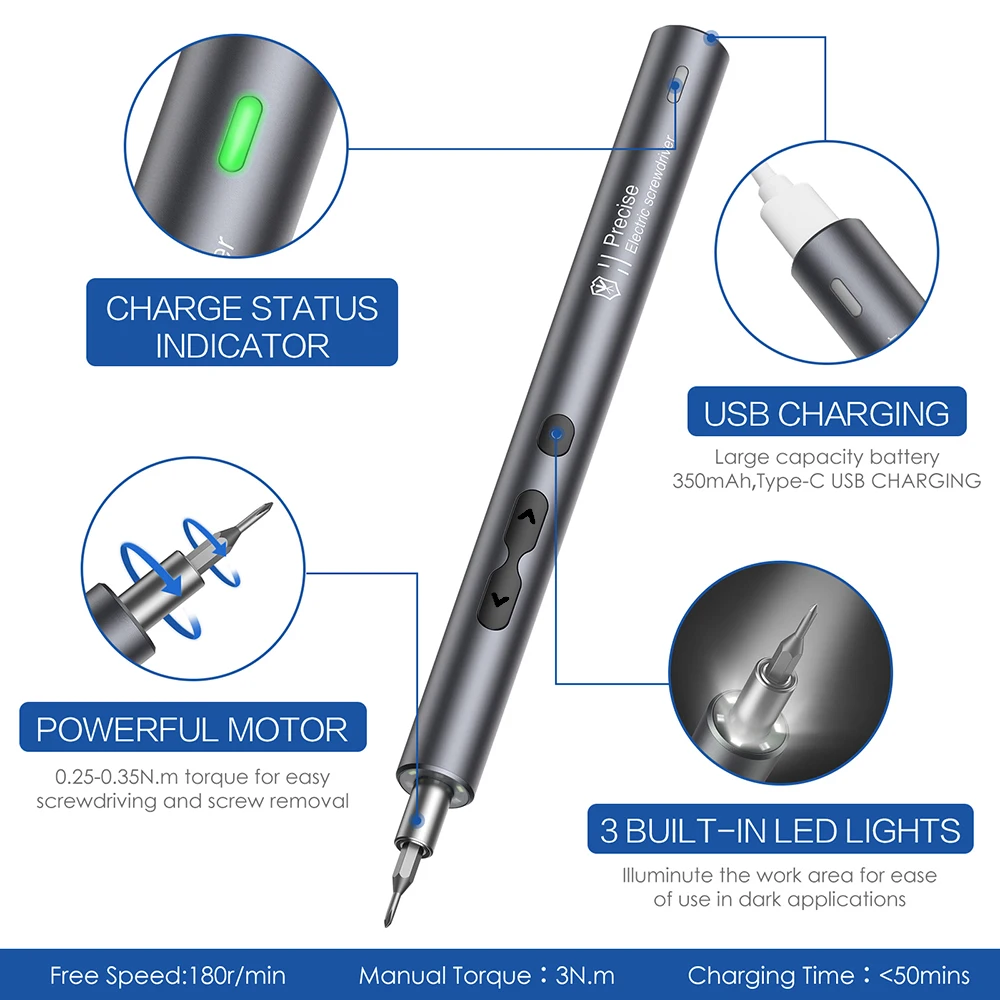

● Strong magnetic motor, the maximum speed can reach 200rpm. With the all metal gear box, the concentricity of the bits is less than 0.2mm when rotating, which can effectively improve the finishing efficiency.
● Small size, built-in rechargeable lithium battery, long service life and 400+ precision screws can be hit when fully charged.
● 9 kinds, 24pcs S2 steel precision bits, hardness up to 60HRC, tough and durablem meets the needs of mainstream electronic products and new small household appliances disassembly and assembly.
● 6pcs commonly used 45mm long bits to cope with more complex situations such as deep hole, narrow space and so on.
● Integrated aluminum alloy shell, anodized aluminum alloy process is antiskid, sweat resistant and not easy to rust.
● 13 battery safety tests & 3 charging protection is safer
● 3 LED lights provide enough bright spots.
N20 Handle Features
Battery Capacity: 350mAh
Charging Time: <50mins
Battery Type: Li Battery
Form Factor: 213x64x33mm
Electric Torque: 0.25-0.35N.m
Net Weight of the Screwdriver: 54g
Voltage: 3.7V-DC
Free Speed: 200r/min
Manual Torque: 3N.m
Net Weight: 256g
N30 Handle Features
Battery Capacity: 350mAh
Charging Time: <50mins
Battery Type: Li Battery
Form Factor: 213x64x33mm
Electric Torque: 0.45-0.5N.m
Net Weight of the Screwdriver: 54g
Voltage: 3.7V-DC
Free Speed: 300r/min
Manual Torque: 3N.m
Net Weight: 256g
1. 3 times the torque (manual torque: 3N.m electric torque: 0.45-0.5Nm)
2. Increase the speed (idling speed: 300 r/min)
3. Locked-rotor protection (0.2S of locked-rotor will stop the power supply to the motor, mainly to protect the motor. Prevent the motor from overheating and burn out the motor and circuit board)
4. Charging prompt (the charging light changes from white to red when charging, and green when fully charged)5. Low battery reminder (when there is no power, press forward, reverse, the electric screwdriver does not work, the light flashes 5 times)

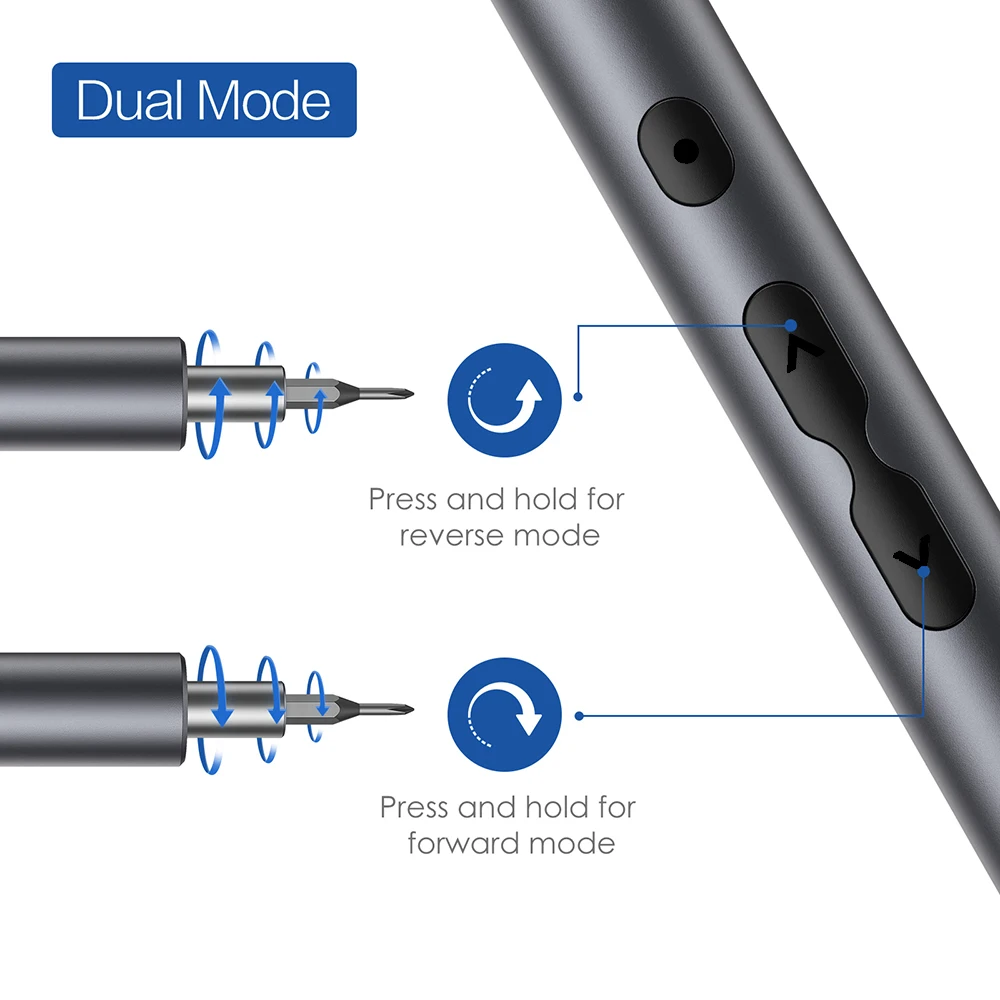

6. Motor protection (the motor changes from forward to reverse, or from reverse to forward, and the electric screwdriver starts with a delay of 0.1 S, mainly to protect the motor and prolong its service life)
7. Lifespan is improved (the motor will automatically stop after two minutes of rotation, and it will start when pressed again to prolong the life of the motor and battery)
8. Power saving mode (the light will automatically turn off after pressing once for 3 minutes)
Applicable scenarios
Suitable for repairing various precision electronic products and digital products, such as cell phones, laptops, cameras, watches, game consoles, PS5，Xbox，Switch, etc.

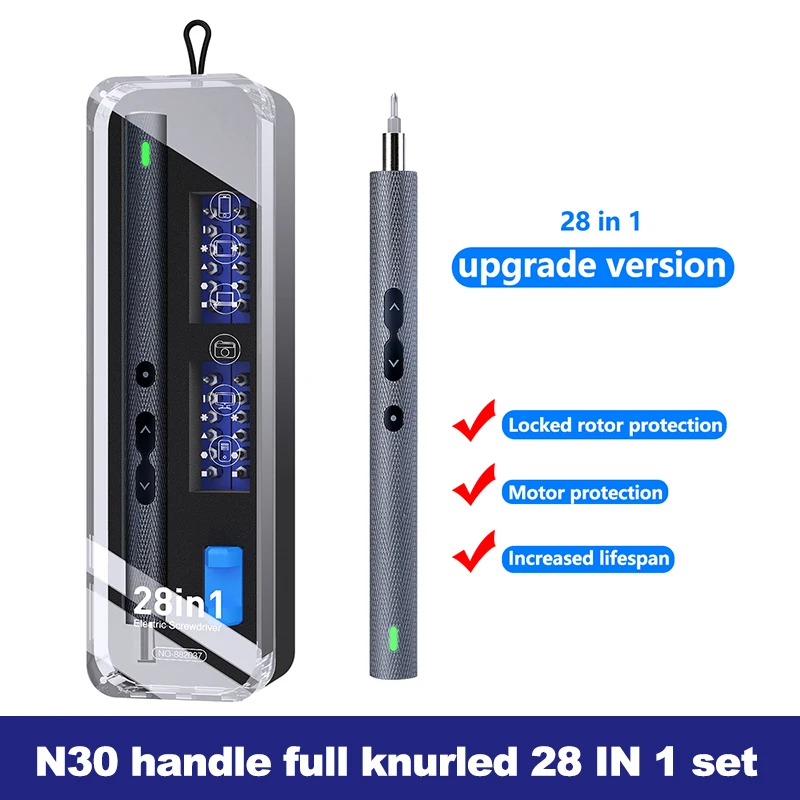

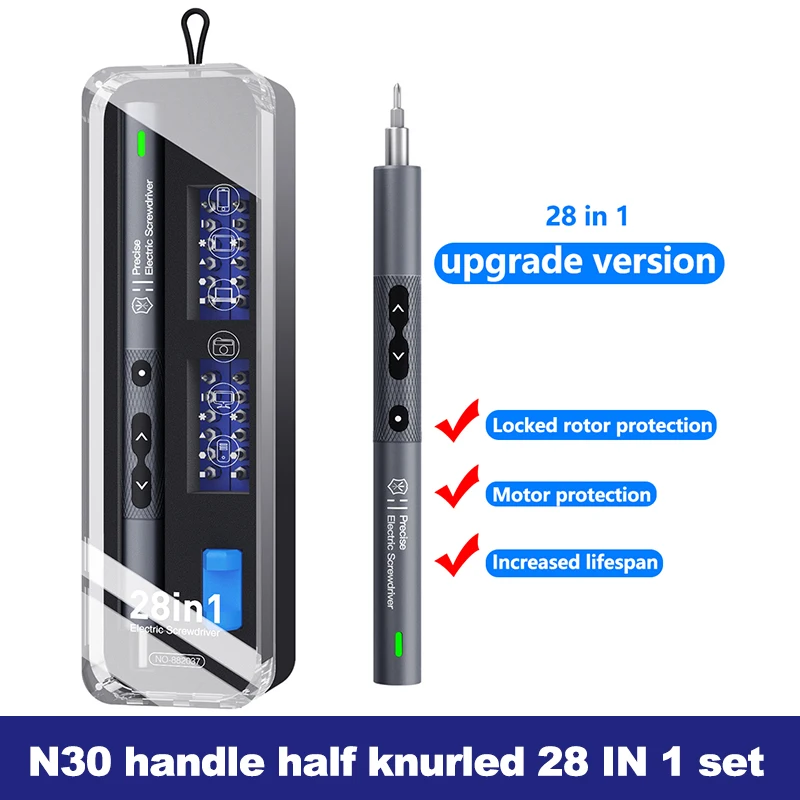

N30 Handle Upgraded Version 28 in 1

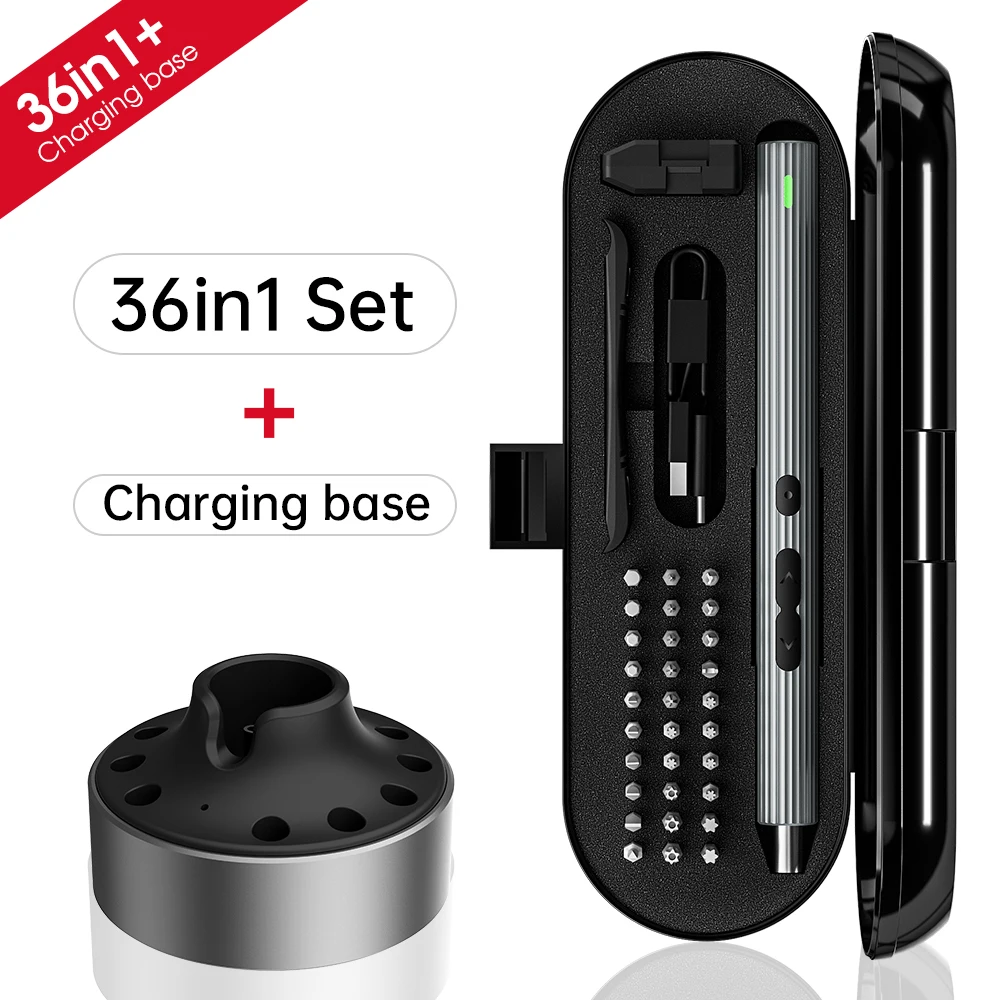

36 in 1 with Charging Base

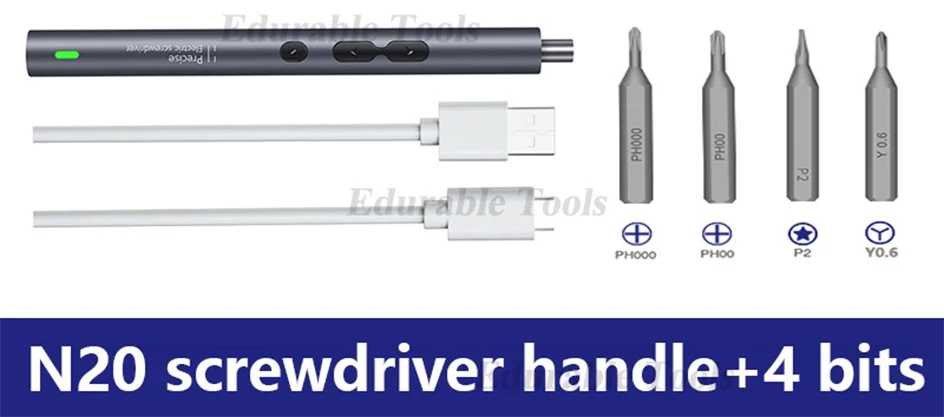

N20 Screwdriver Handle
Note: The separate screwdriver host does not contain bits, only one host and one charging cable, please pay attention when purchasing.

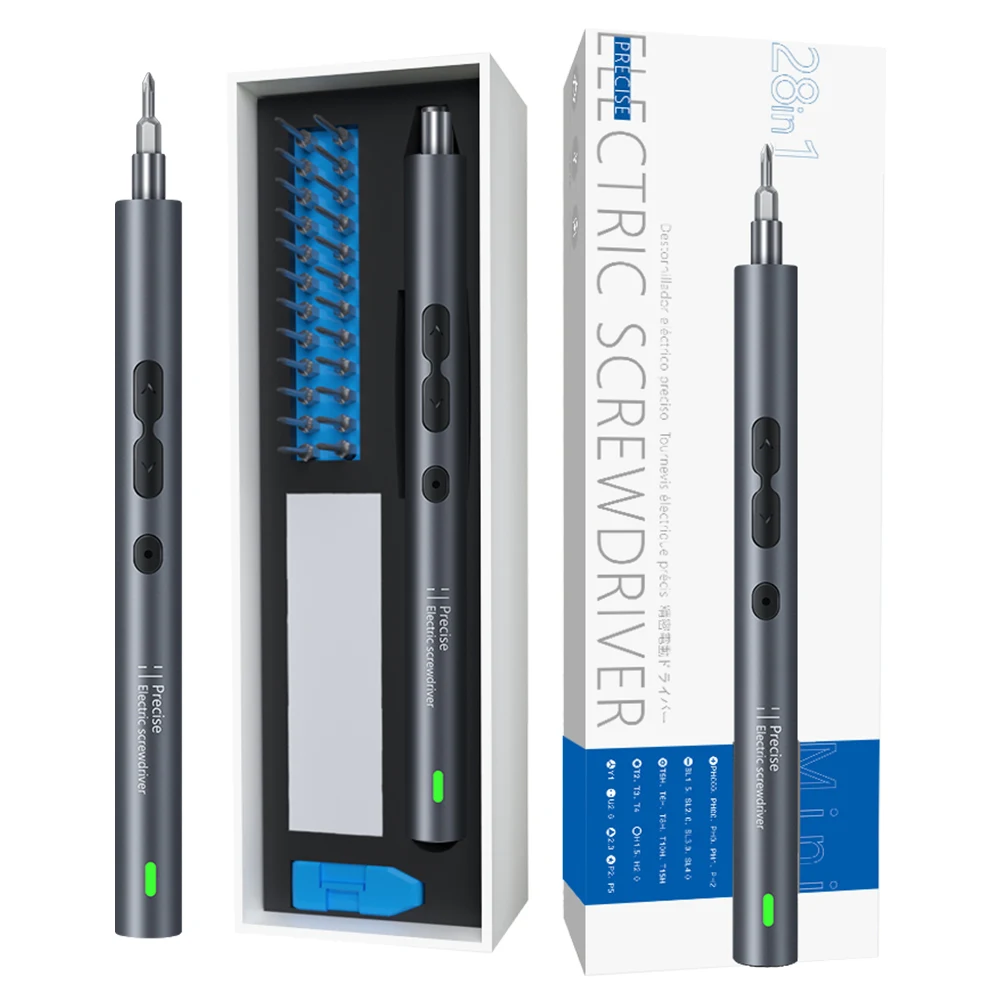

N20 handle 28 in 1 set
package list：
screwdriver handlex1
magnetizer/demagnetizerx1
crowbarx1
type-c charging cablex1
s2 steel bitsx24
packing boxesx1

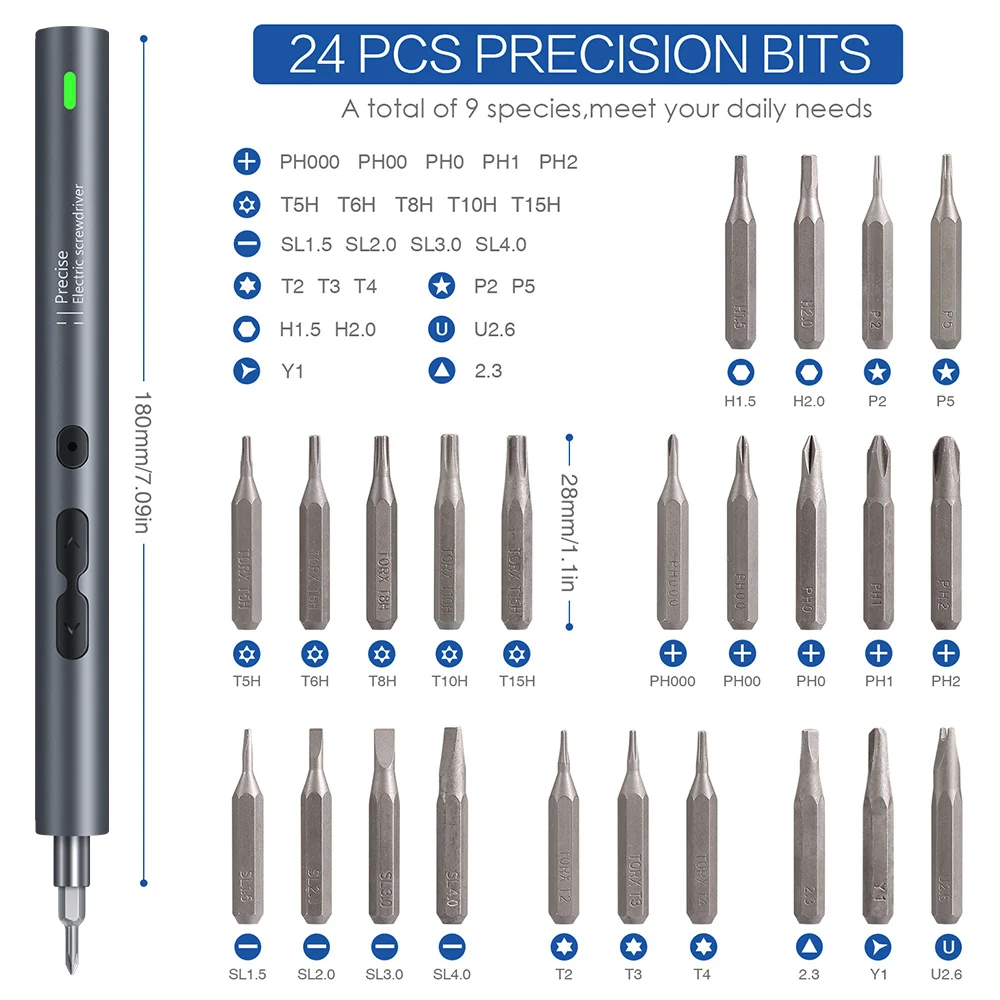

Bits size: 4x28mm
bits type：
Phillips: PHOOO, PHOO, PHO, PHI, PH2
Flathead: SL1.5, SL2.0, SL3.0, SL4.0
Torx: T2, T3, T4,
Torx security: T5H, 6H, T8H, T10H, T15H
H1.5, H2.0
Pentalobe: ☆P2(Pentalobe 0.8),☆ P5(Pentalobe 1.2)
Spanner: U2.6
Tri-point: Y1
Triangle: △2.3
N20 handle 62 in 1 set
Package Includead
bits x 48
Aluminum alloy storage box x 1
Thin triangle x 2
Thick triangle x 2
USB charging cable x 2
Precision Screwdriver x 1
Stainless steel tweezers x 1
15cm nyionn long crowbar x 1
Sucker x 1
crowbar x 1
Card picker x 1
magnetizer x 1
Magnetic pad x 1
Metal crawbar x 1
bits type:
Phillips: PH0, PH00, PH000, PH1, PH2
Flathead: SL1.0, SL1.5, SL2.0, SL2.5, SL3.0, SL3.5, SL4.0
Hex: H0.7, H0.9, H1.3, H1.5, H2.0, H2.5, H3.0, H3.5, H4.0
Torx security: T5H, T6H, T7H, T8H, T9H, T10H, T15H, T20H
Torx: T2, T3, T4
Pentalobe: ☆P2(Pentalobe 0.8),☆ P5(Pentalobe 1.2), ☆ P6
Spanner: U2.6, U3.0
Tri-point: Y0.6, Y1, Y2.0, Y2.5
Triangle: △2.0, △2.3, △3.0,
Square: SQ0, SQ1
SIM Eject Bit: 0.8
N20 handle 120 in 1 set
Package Includead
Electric screwdriver handle x 1
Plastic extension soft rod x 1
Iron crowbar x 1
207 crowbar x 1
Shovel type crowbar x 1
Charging cable x 1
Small cleaning brush x 1
ESD-15 crimping 1.5 thick spray paint tweezers x 1
Double-headed blue crowbar x 1
Stainless steel suction cup x 1
Through needle x 1
Small degaussing device x 1
Thin triangle piece x 1
48-compartment black and white universal magnetic screw memory pad x 1
10-hole soft glue x 1
Batch head: 100pcs CRV phosphating ash

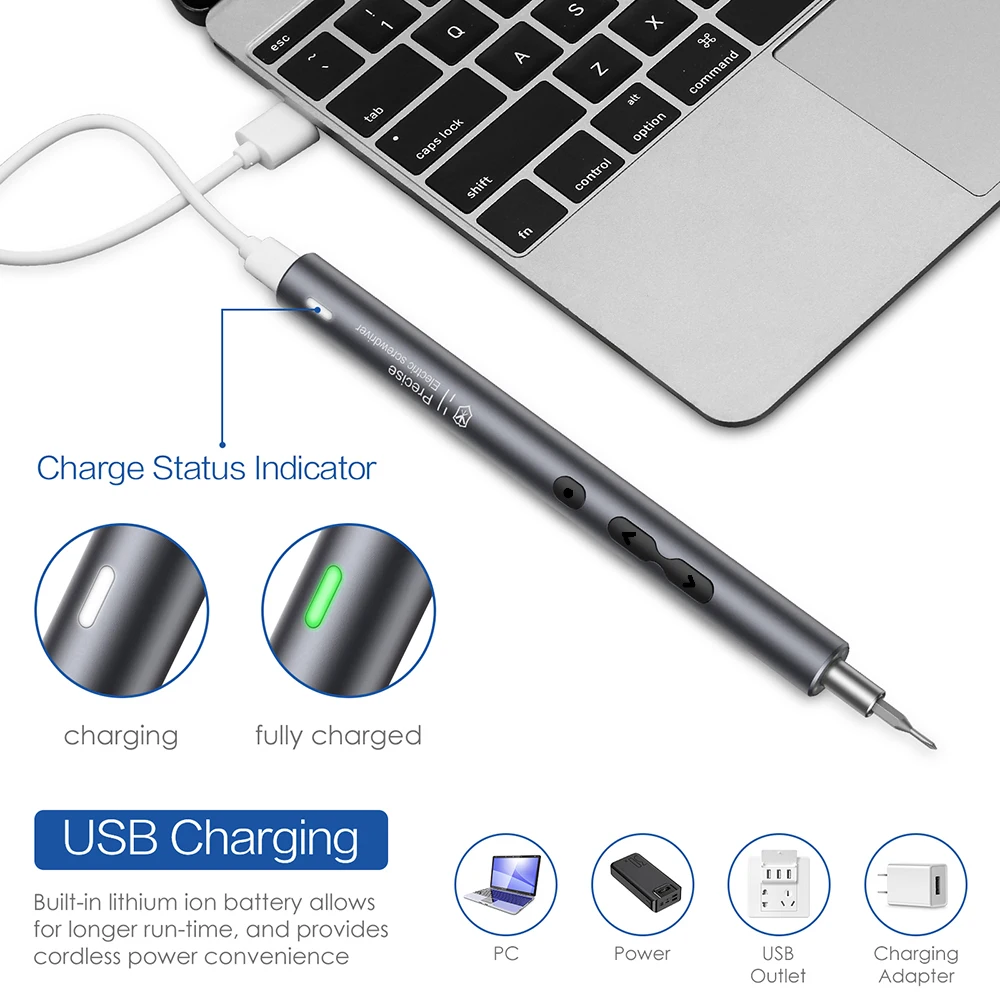

Charging Instruction
When using the USB charging port, the charging indicator shows white means “ charging”, shows green means“ full chargew.
1. Please charge the screwdriver fully and the charging time is no more than 2.5 hours before when the screwdriver the first time.
2. Please charge the screwdriver at lease once a month to maintain a good performance.
3. Only charge the screwdriver by using the provided cable.
Using Precaution

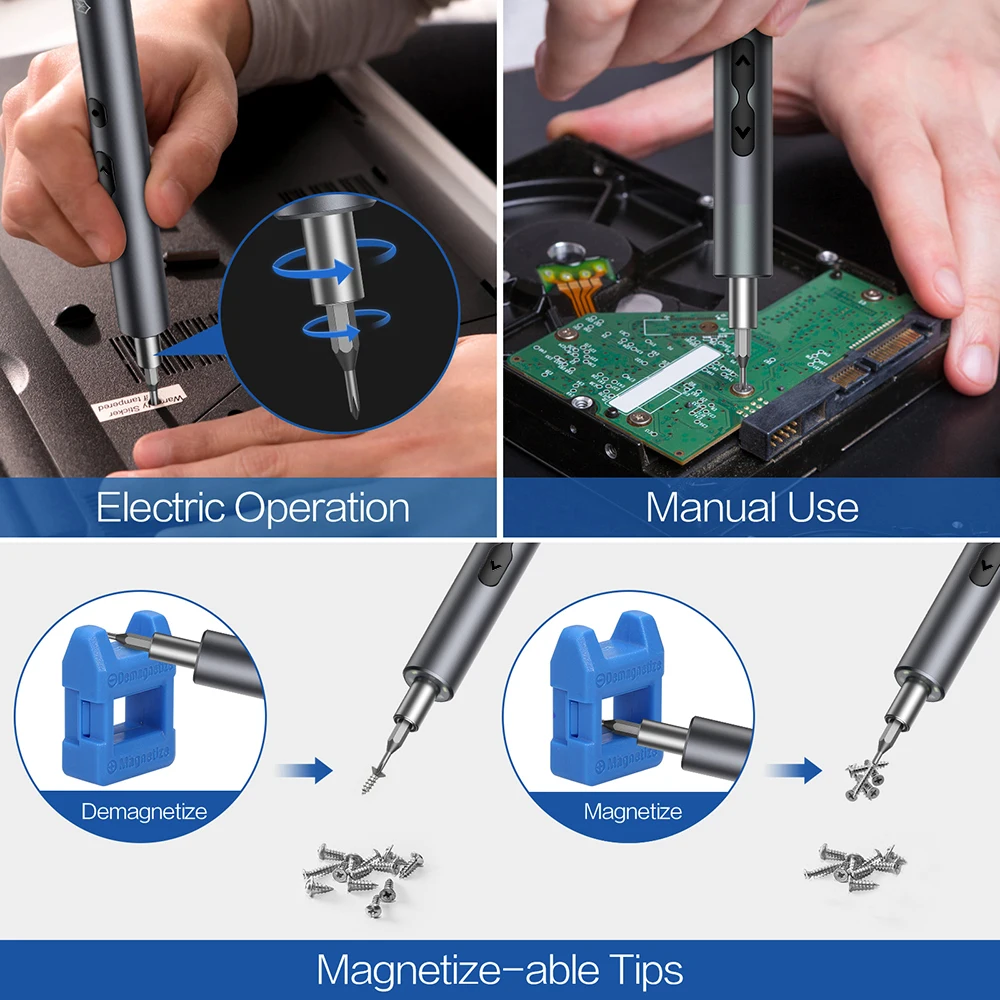

1. When using the electric screwdriver to remove screws, please use the manual mode to loosen the screws avoid destroy screws and other parts at screws.
2. When not using the electric screwdriver, please put it out of the reach of the children.
3. If the product falls into the water or splashes into the machine, please stop using it to avoid short circuit.
4. When maintain the electric screwdriver, please check the smoothness of the screwdriver head rotation, whether other parts are damaged, etc. If there are some damages, please repair it before using. Using the damaged electric screwdriver may cause accidence.
5. When the fastener or the hidden wire operation may be touched, the electric screwdriver should be held by the holding surface of the insulator.
6. Don't disassemble this product.
7. Please follow the instructions.
