• 4K HD-MI Video wall controller :Enjoy high-quality video walls with this 4K HD-MI video wall controller that supports up to 4 displays.
• 2×2 Multi video screen processor expander :Expand your video screen space with this 2×2 multi video screen processor expander that allows you to connect multiple displays.
• Easy to use :This video wall controller is easy to use, making it perfect for both professionals and beginners.
• Security & Protection :Keep your data safe and secure with this video wall controller that is designed to meet the highest security standards.

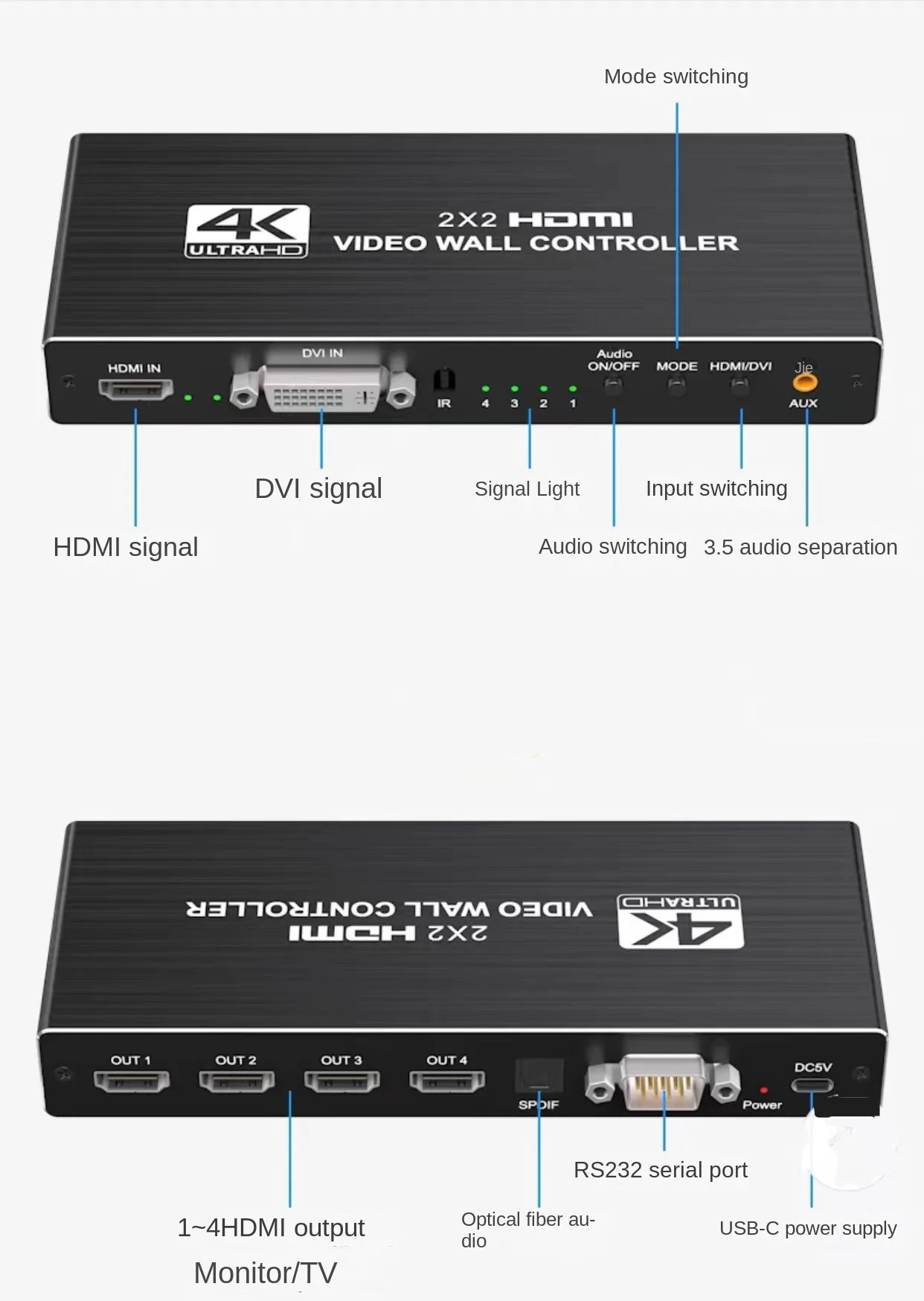

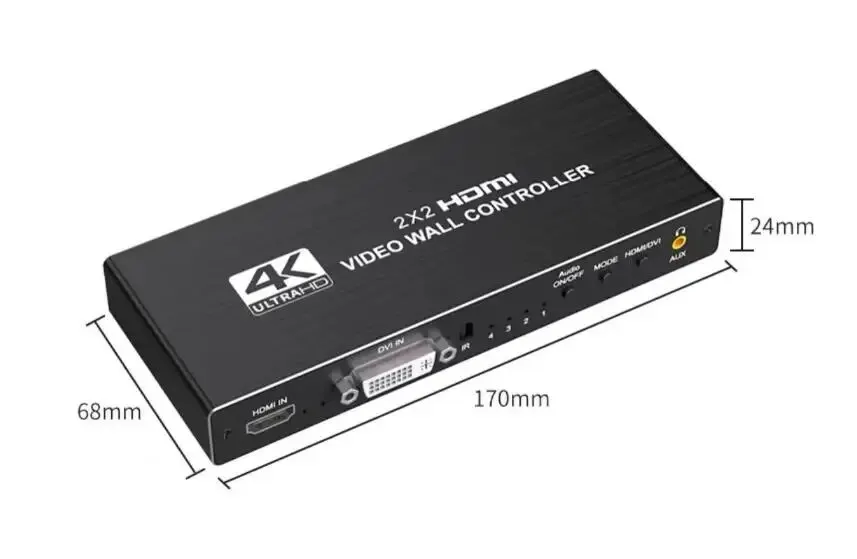

Body size: 170x68x24
Power interface: TYPE-C
Real-time picture: HD-MI /DVI
Video output interface type: HD-MI2.0
Audio access: SPDIF

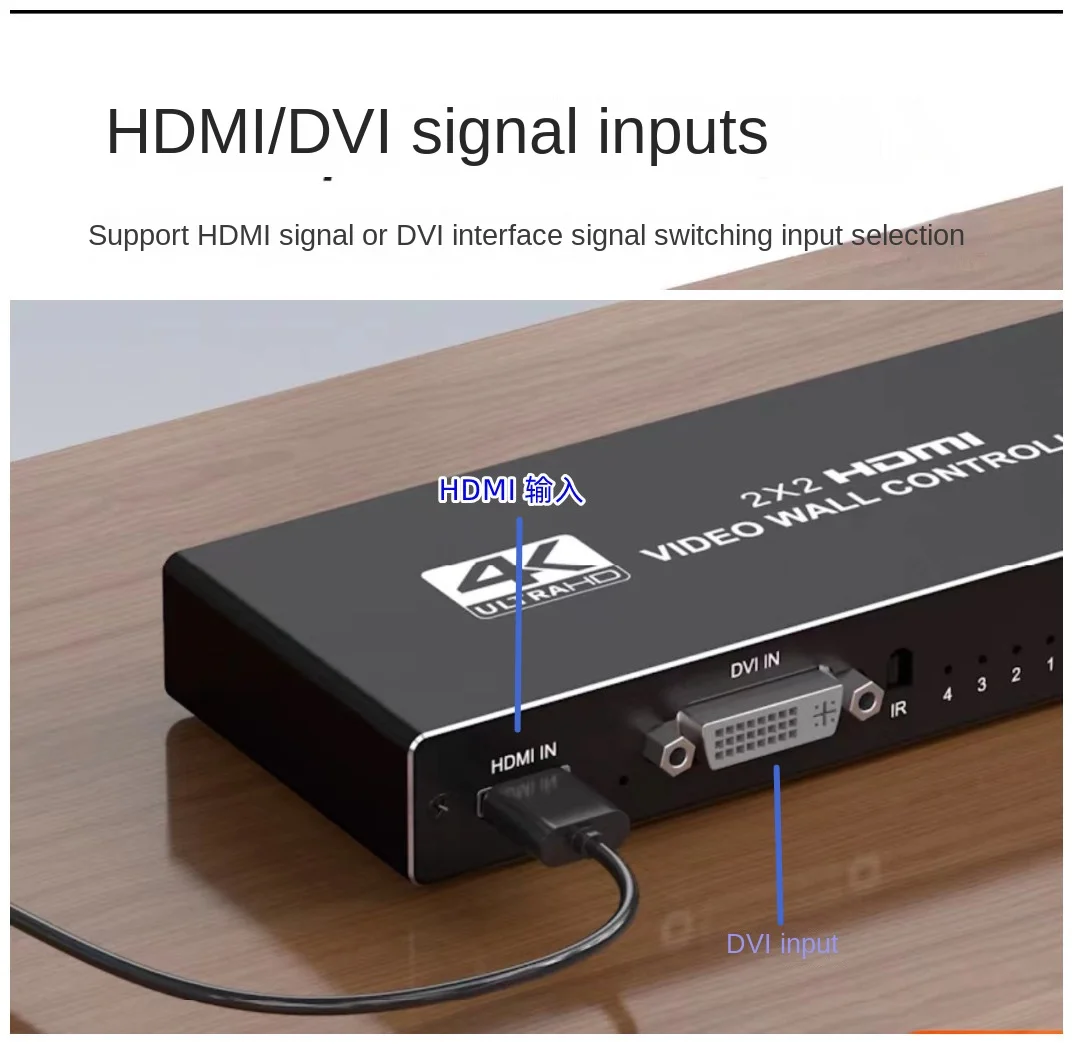

Video input interface type: DVI/HD-MI/RS232
Number of audio input interfaces: 2
Type: Splicing processor
Power supply voltage: 5V2A
Audio input interface type: SPDIF/3.5 audio.
Important note
1)The 4K refers to the HD-MI inputs signal only.It supports up to 4K 30Hz in and 1080P 60Hz out.
2)Pls use qualified HD-MI cable with all 19 pines wired and shielded to pair the source and display.
Most sync issues are caused by poor cables.
3)For a pleasant video experience, pls use Professional Video Walls.

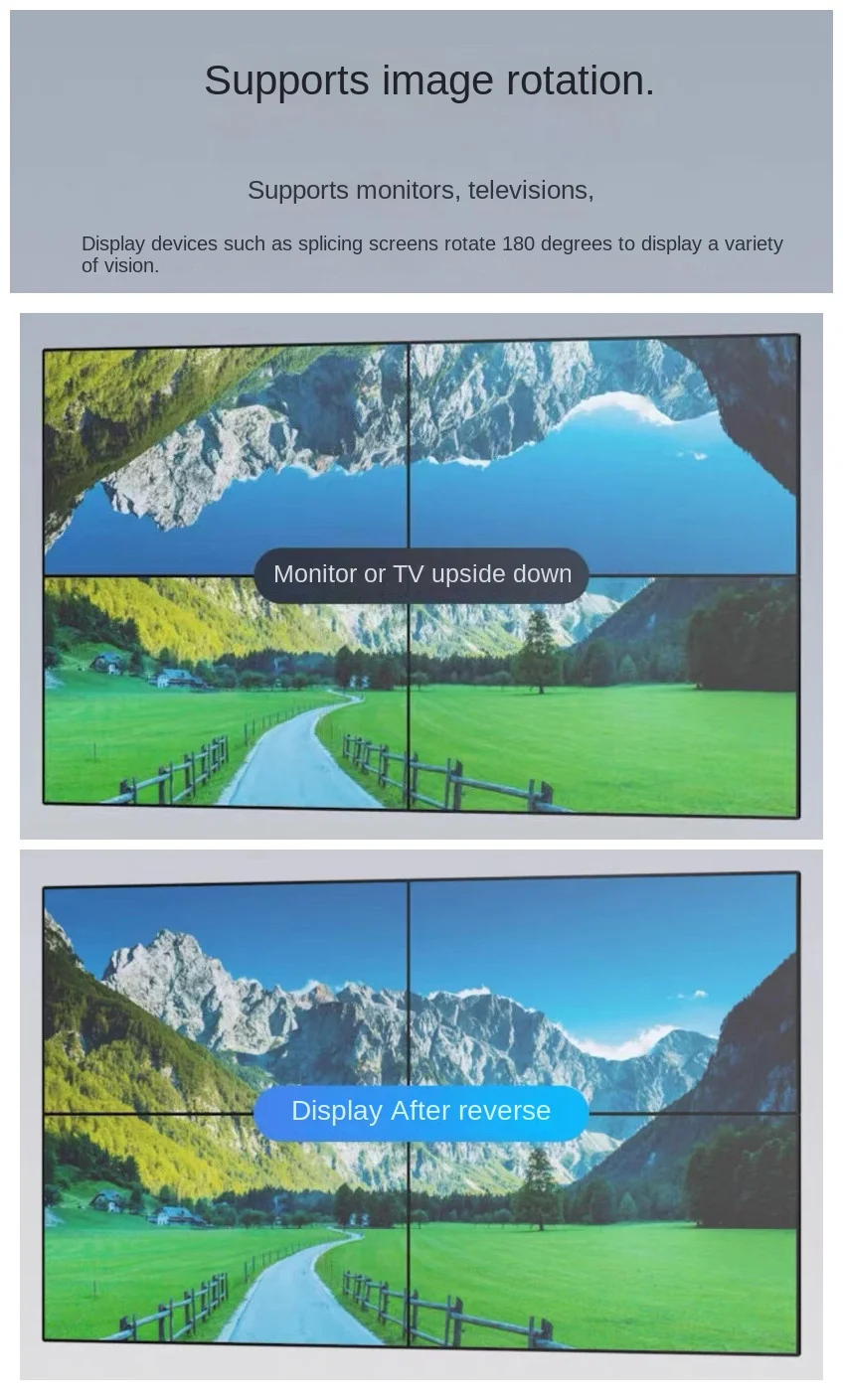

4) 180° rotatation only works under 2X2 mode and 1080P resolutions.
5) It supports PCM 2CH stereo audio only either from Aux or the Digital toslink port.And under some cases, when the input is 4K 30Hz, there might be no audio. Pls set the resolutions to 1080P.

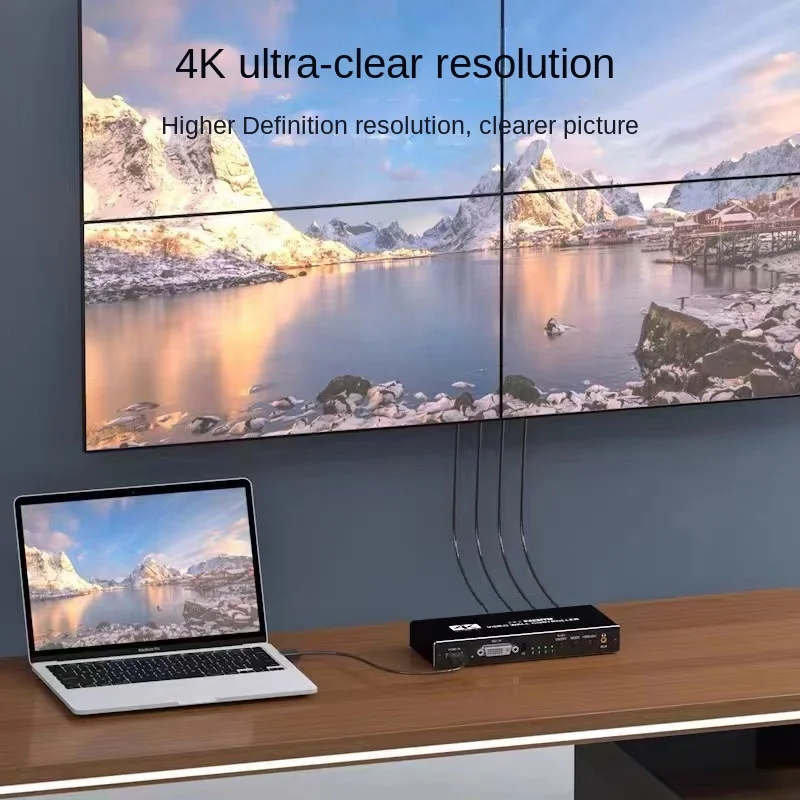

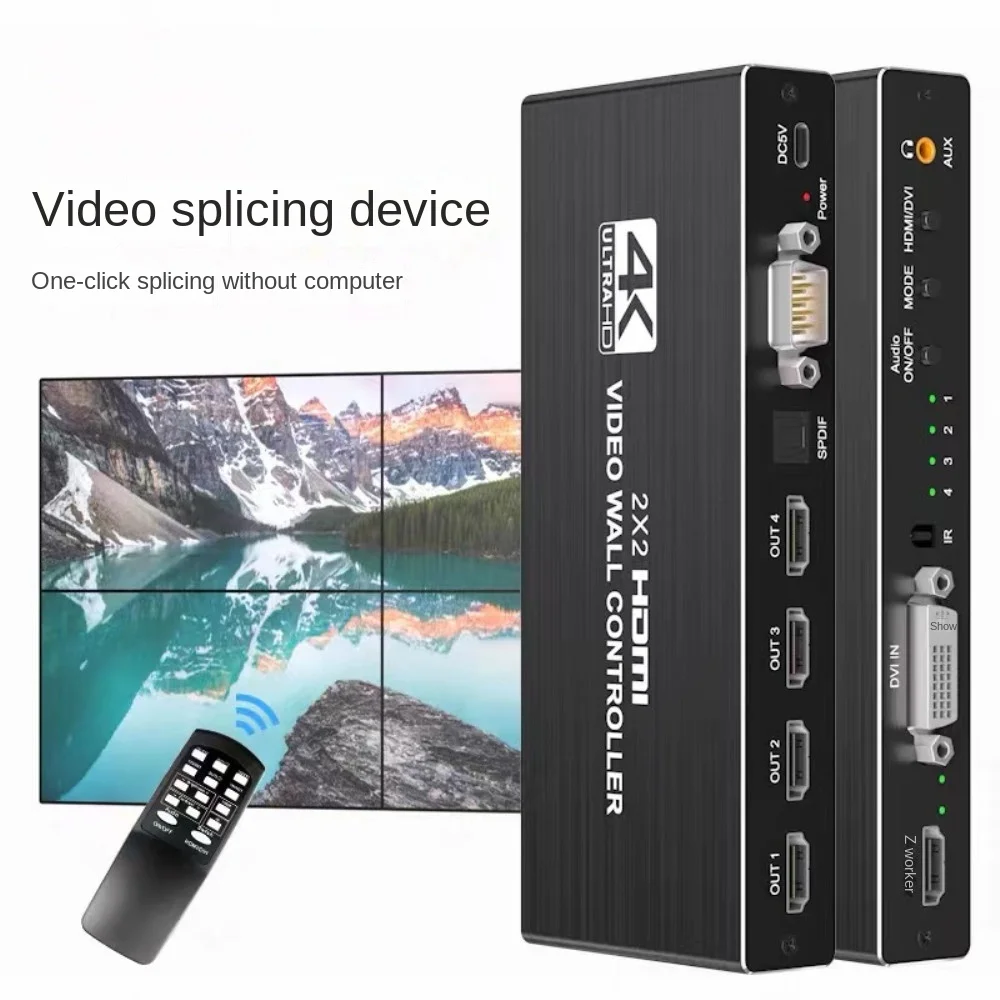

HD-MI Video Wall Controller
HD-MI TV wall processor can distribute one HD-MI or DVI input signal device (DVD, TV Box, Xbox, PS4, Computer etc.) to 4 HD-MI outputs display screens simultaneously, which via LCD splicing screens can form a complete dynamic large video wall screen and digital signage displays, bring you an amazing visual experience.
1080P HD Display Resolution
This 4K HD-MI LED video wall controller is compliant with HDCP 1.4 and HD-MI 1.4, HD-MI & DVI input can support resolution can up to 4K@30Hz, including 3840x2160P @24/ 30Hz, 1920x1080P@25/ 30/ 50/ 60Hz; the HD-MI output resolution can support 1920x1080P@60Hz.

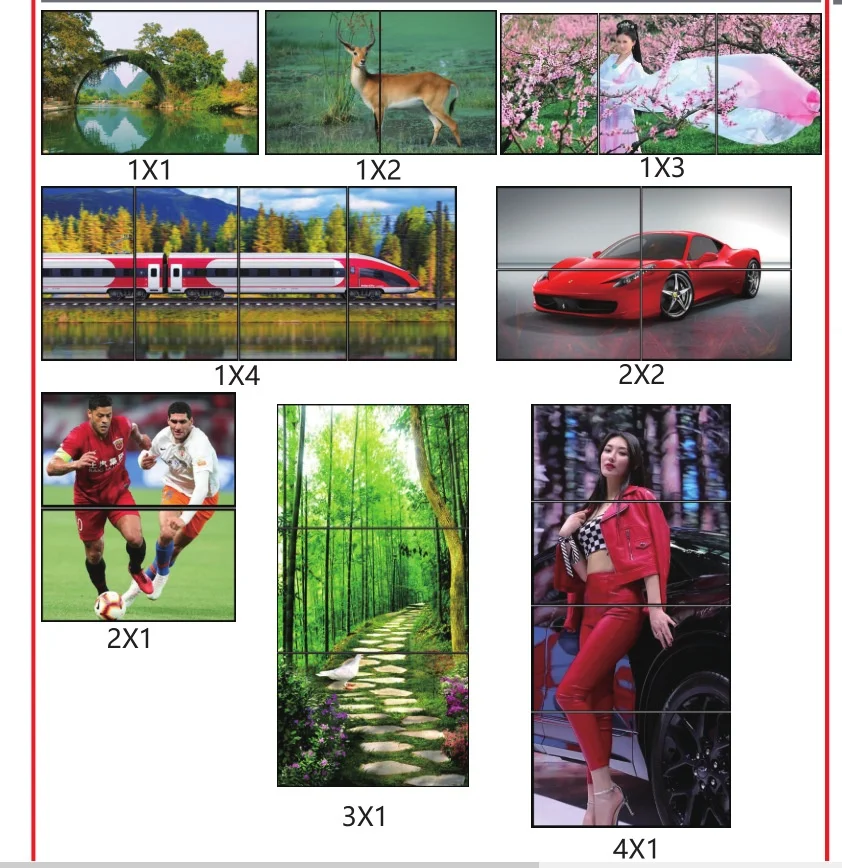

8 Adjustable Display Modes

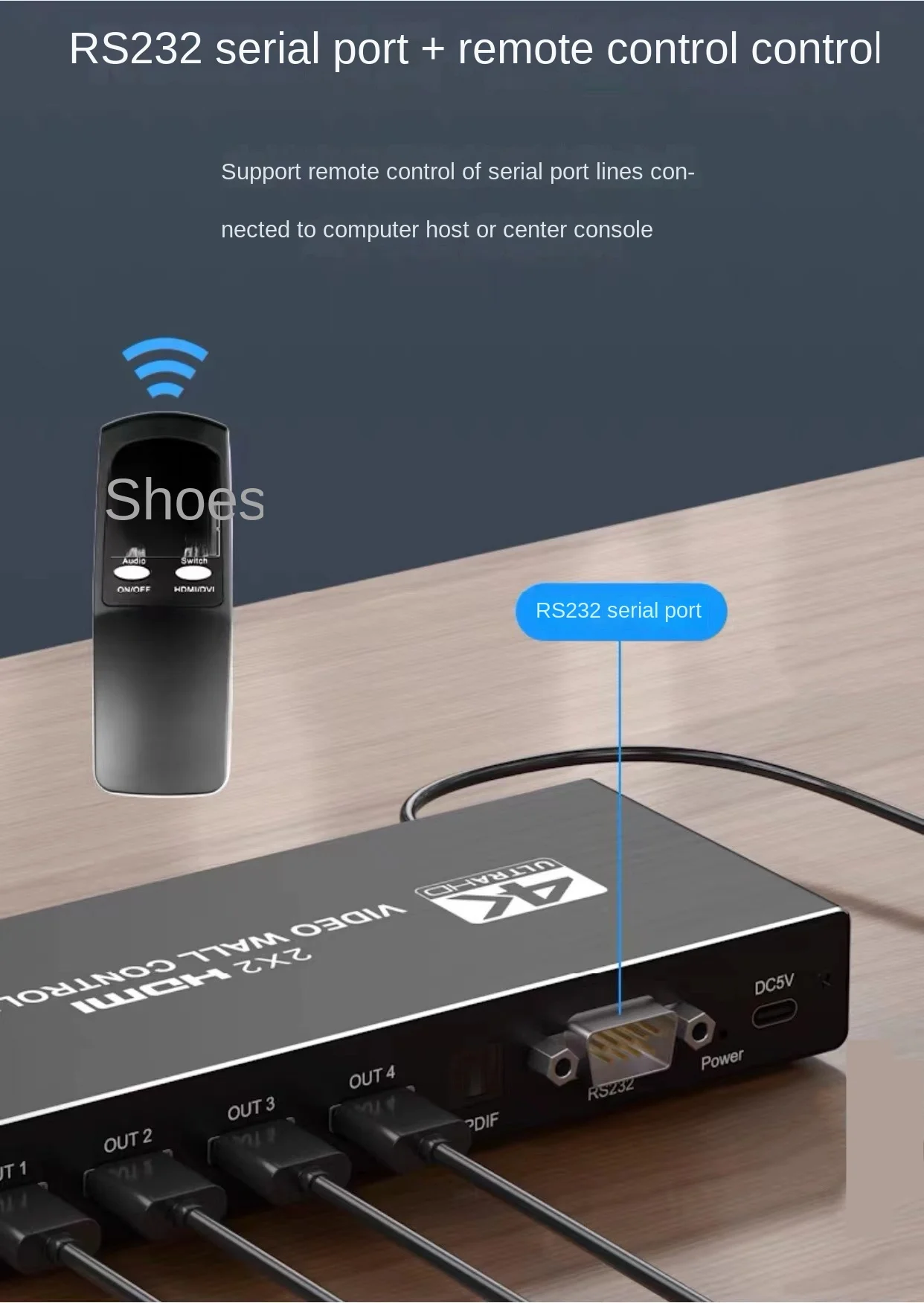

This 2×2 HD-MI video image processor can connect up to 4 LCD TVs or other displays, which can support multiple display modes, such as 2×2, 1×1, 1×2, 1×3, 1×4, 4×1, 3×1, 2×1. All this modes provides variety splicing options, can easily switch the modes through the IR remote control without getting up or press the “Switch” key at the TV wall controller. Also support RS 232 advanced remote-control.

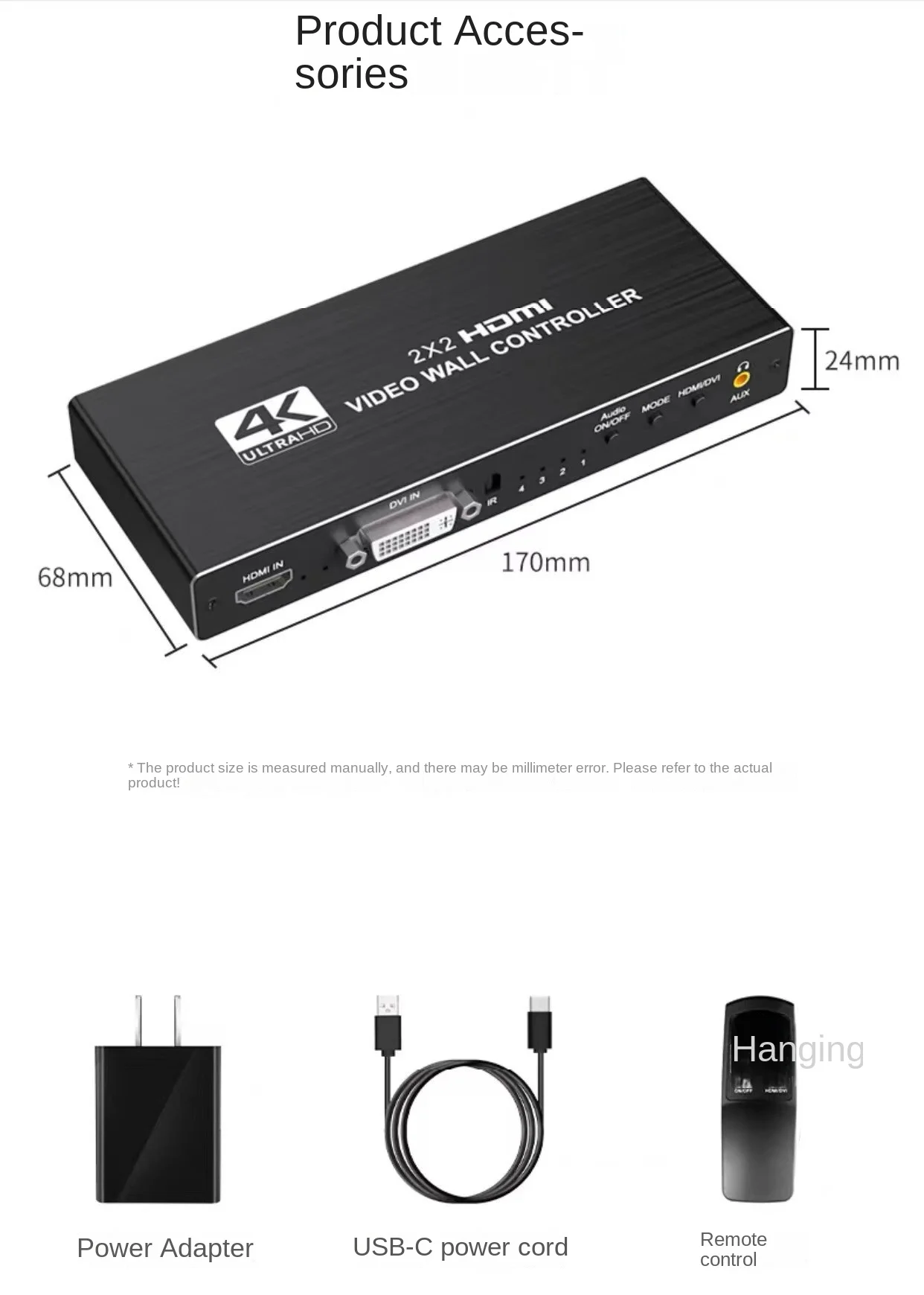

Picture splicer x1
Instructions x1
TYPE-C x1
5V2A Power supply x1
Remote control x1
Notes:
1. Pictures are for reference only. Due to photographic limitations and
Inevitable differences in monitor settings, the colors shown in
Photos may not correspond 100% to the colors of the item itself.
2. Due to manual measurement, there may be 1-2cm difference in size.
