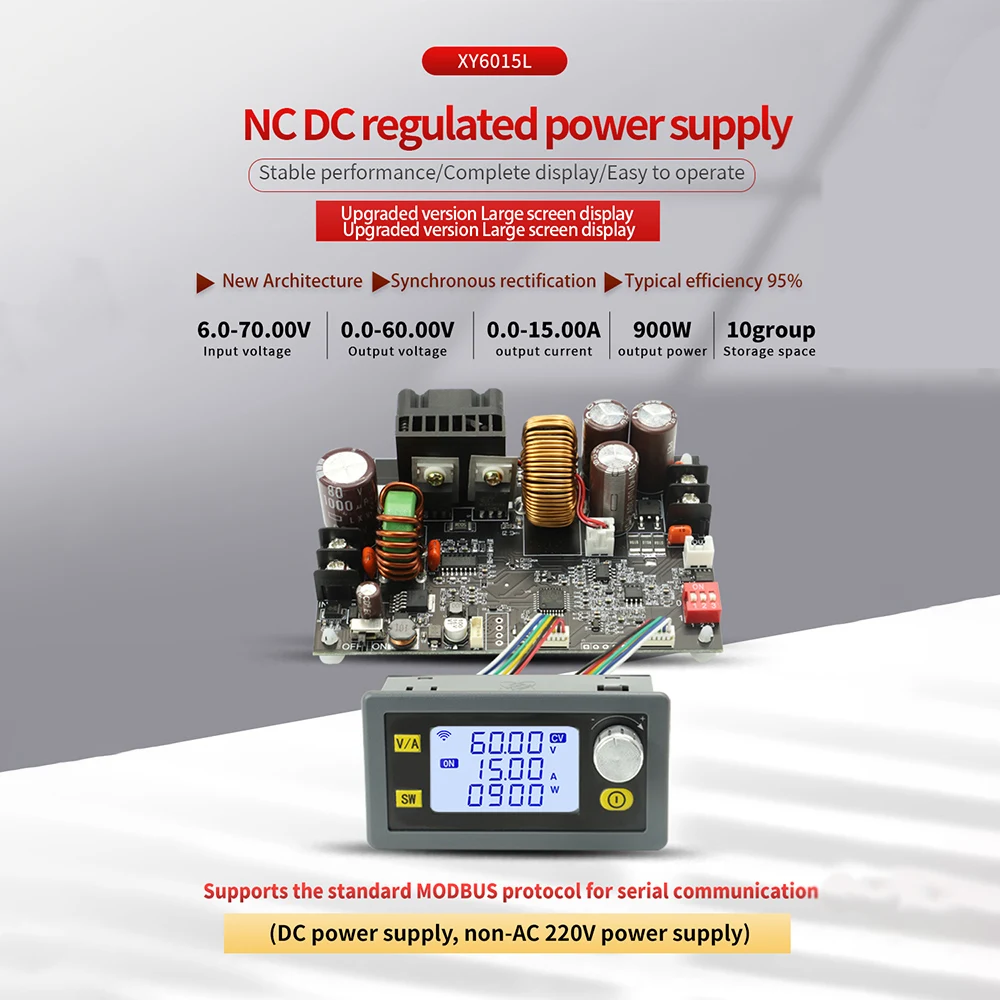

XY6015L 900W Voltage Regulator Power Supply CNC Adjustable Stabilized DC6-70V 15A Constant Voltage Constant Current Step-Down Modules
Product features:
1. Use of high-quality materials, durable
2. Constant voltage and constant current CNC DC voltage stabilization power supply
3. Large screen display, full-view dedicated power LCD
4. Solid materials, input common-mode inductor, significantly reduce the impact of the input power supply wavenumber, to achieve low wavenumber output
5. Complete display, simple operation, stable performance
Parameters:
Input voltage: 6.0~70V
Output voltage: 0.0~60V
Output current: 0~15.00A
Output ripple typical value: 100mv VPP
Output power: 0~900W
Maximum output voltage: (input voltage + 1.1)-2
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01A
Input voltage measurement accuracy: ±1% + 5 words
Output voltage setting and measurement accuracy: ±0.4% + 1 word
Output current setting and measurement accuracy: ±0.5% + 3 words
Cooling fan on:
current more than 2A
power more than 50W
temperature more than 50℃
Cooling fan on and off:
current less than 1.5A
power less than 45W
temperature less than 45°C

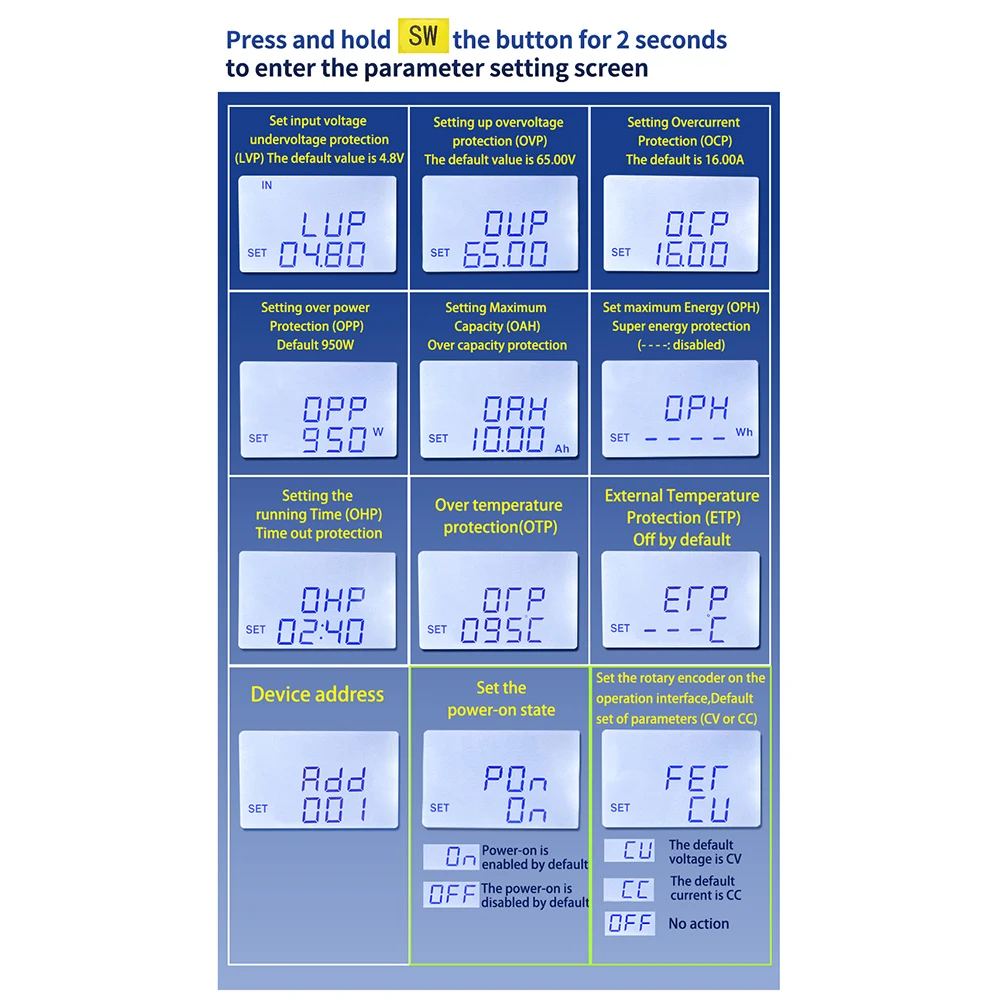

Protection mechanism.
External temperature protection: 0 – 110°C default off
Input overvoltage protection: 71V default
Input undervoltage protection: 4.8-71V adjustable default 4.8V
Output over-voltage protection: 0-65V default 65V
Output overcurrent protection: 0-16A default 16A
Output over power protection: 0-950W default 950W
Over temperature protection: 60 – 110°C Default 95°C
Timeout protection: 0 -100H adjustable Default off
Over capacity protection: 0~9999AH adjustable Default off
Super energy protection: 0~9999WH adjustable Default off
Package List:(A and B optional)

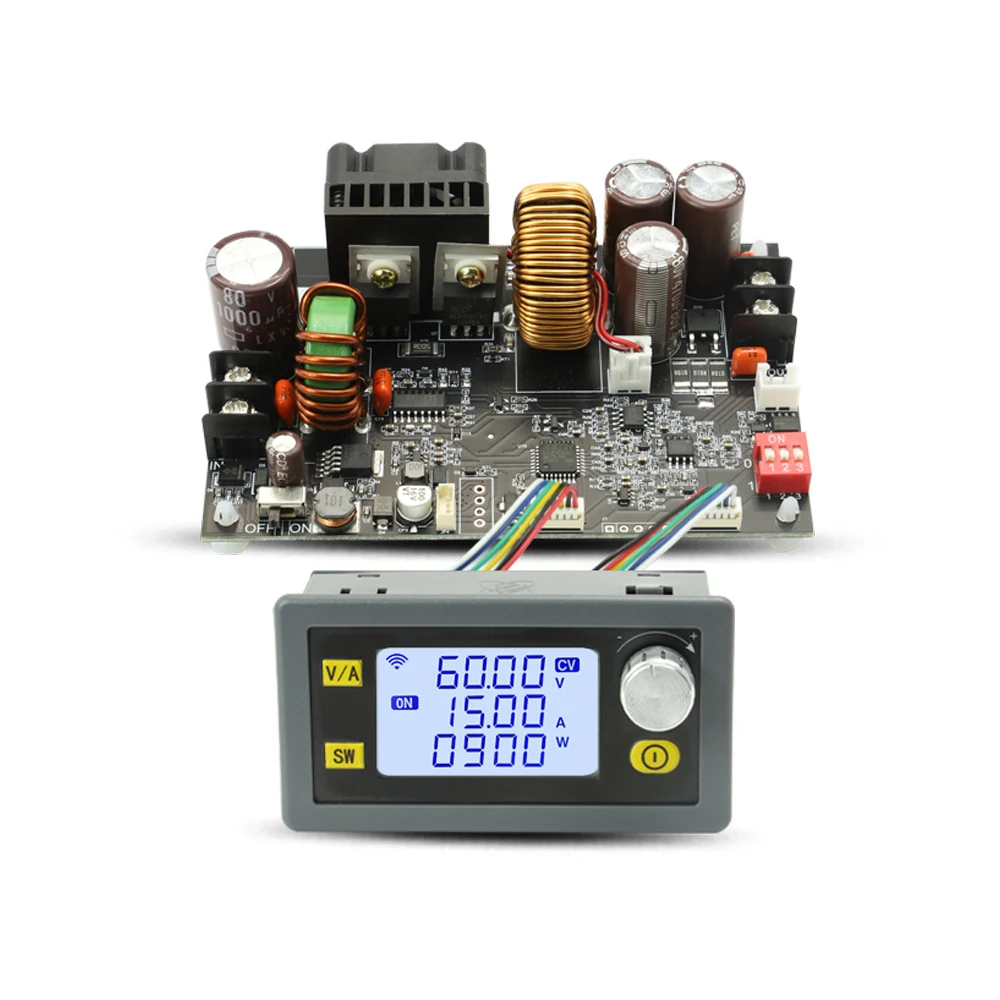

Type A:
Meter head x1
Base plate x1
Cablex2

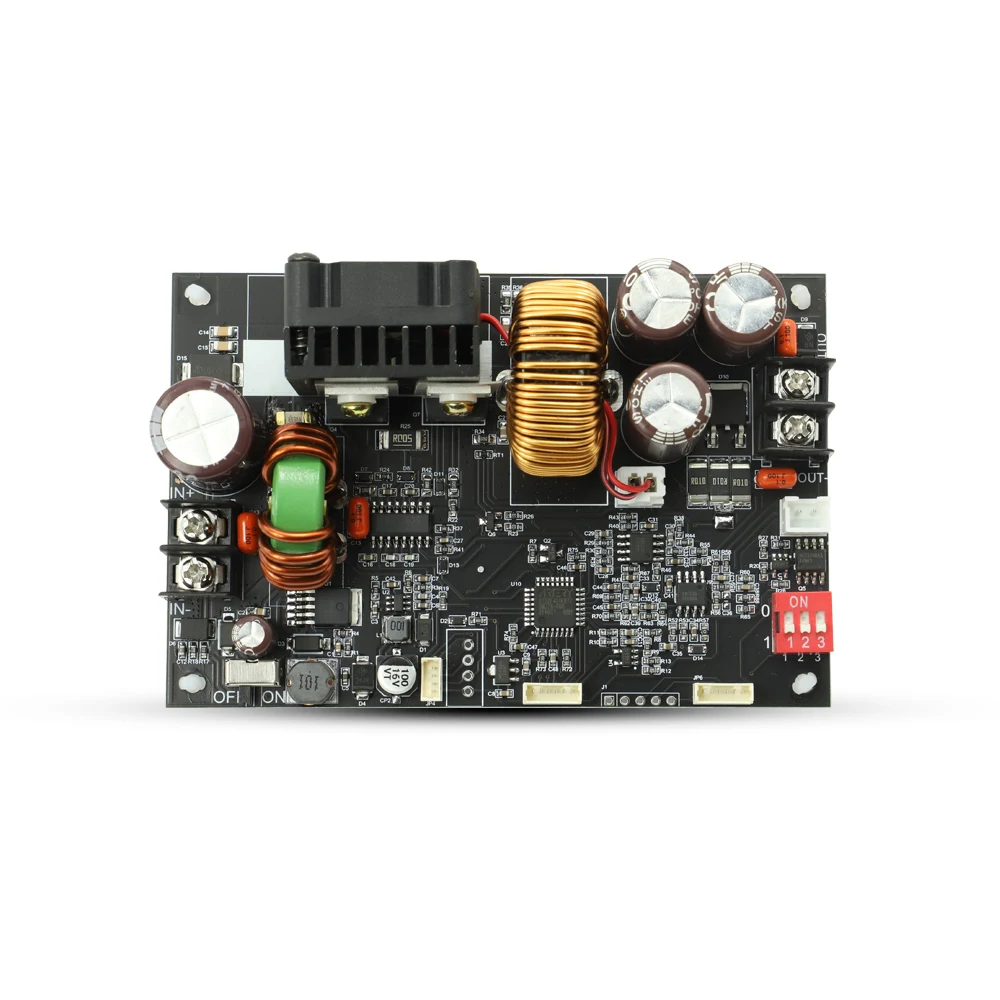

Type B:
Base plate x1 (base plate can be used separately Output current 0-15A)
