BY-V Professional Wireless Lavalier Mini Microphone for iPhone iPad Android Live Broadcast Gaming Recording Interview Vlog

BOYA Official Store（BY-V Series Wireless mini Lavalier Microphone）

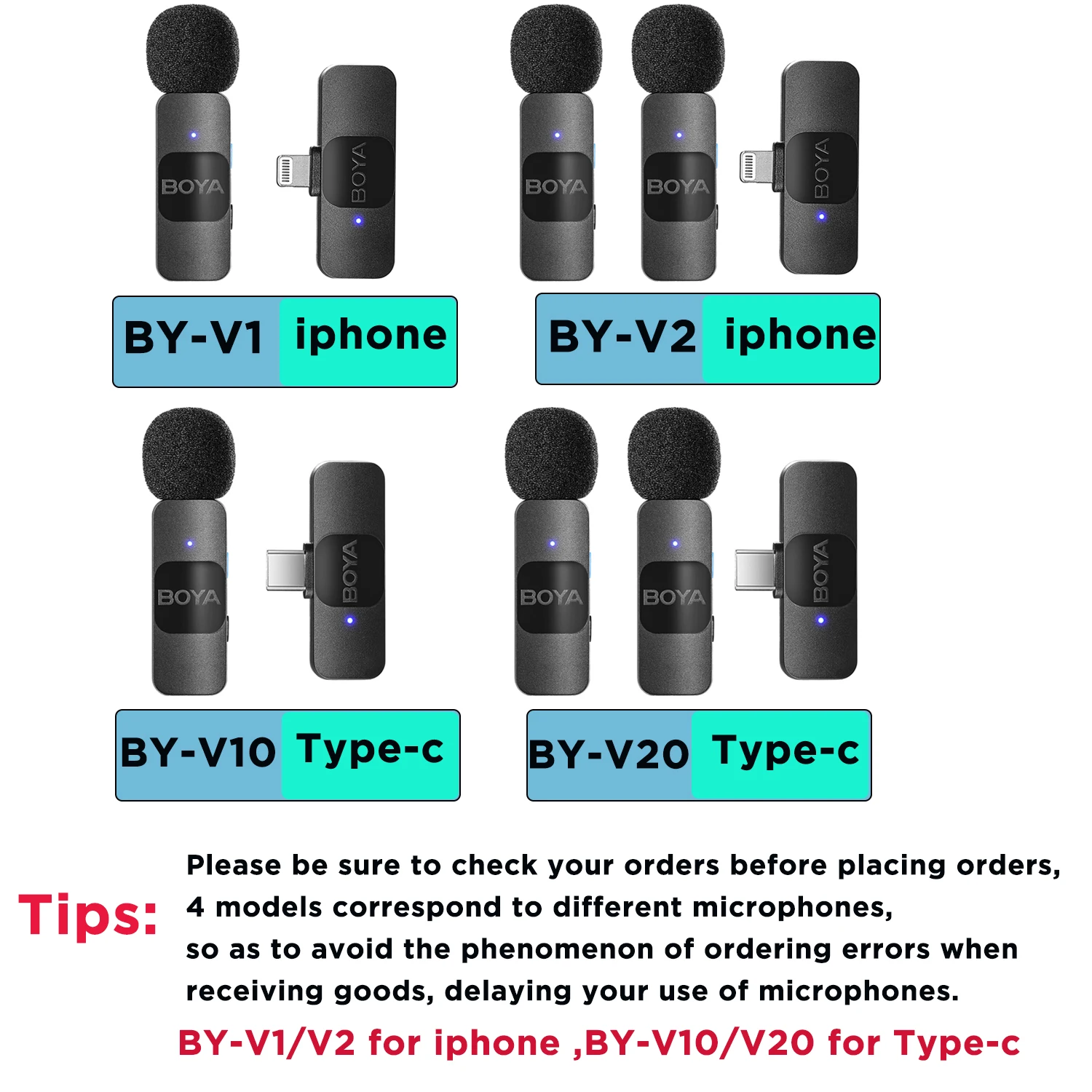

🎙️BY-V series is a mini 2.4Ghz wireless microphone system that provides high quality sound for live streaming , vlogging, course recording, and other audio capturing app lications.

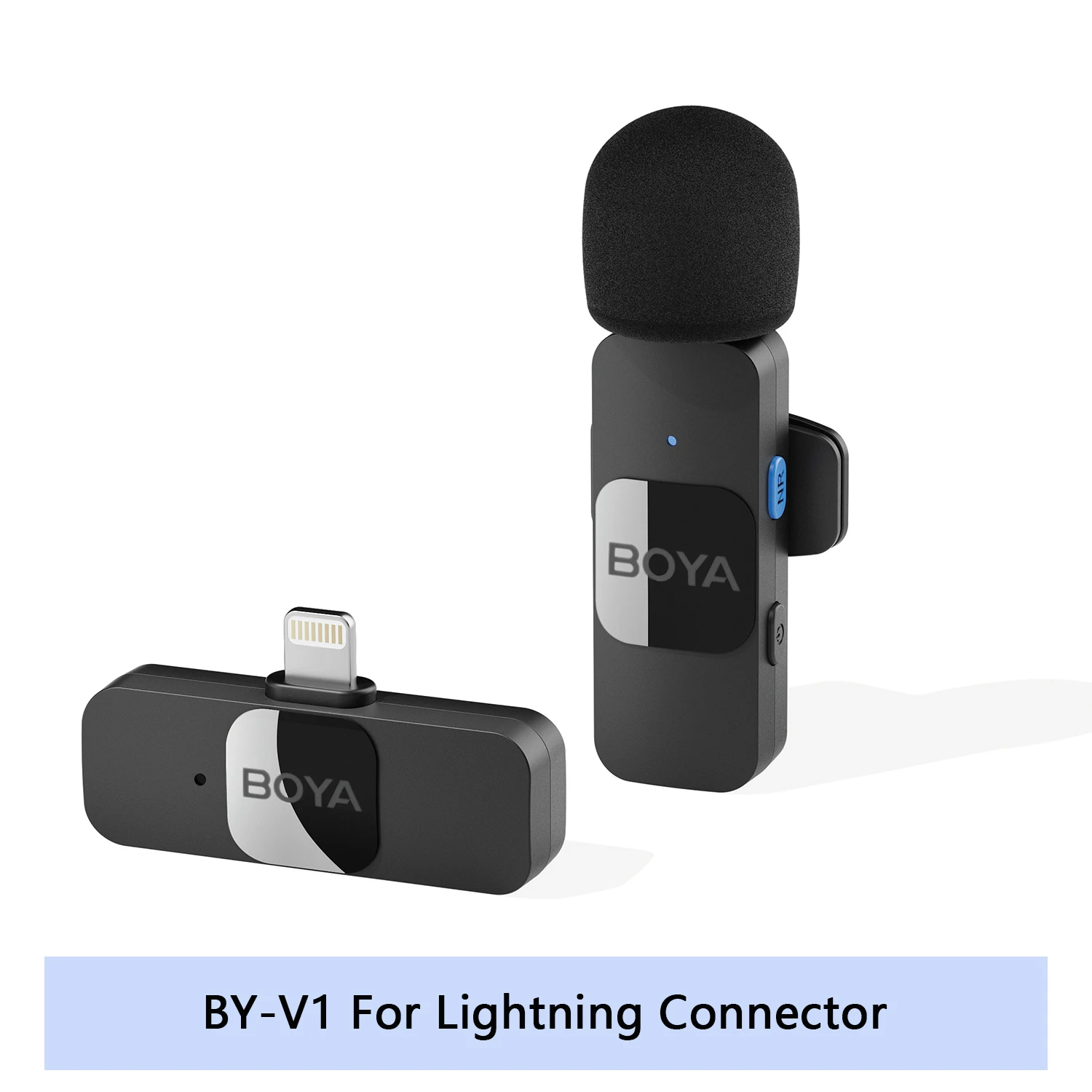

🎙️BY-V1. is compatible with most With an MFi Certified Lightning output, the BY-V1 is designed for Apple iOS devices, and it comes with 1 transmitter and 1 receiver.

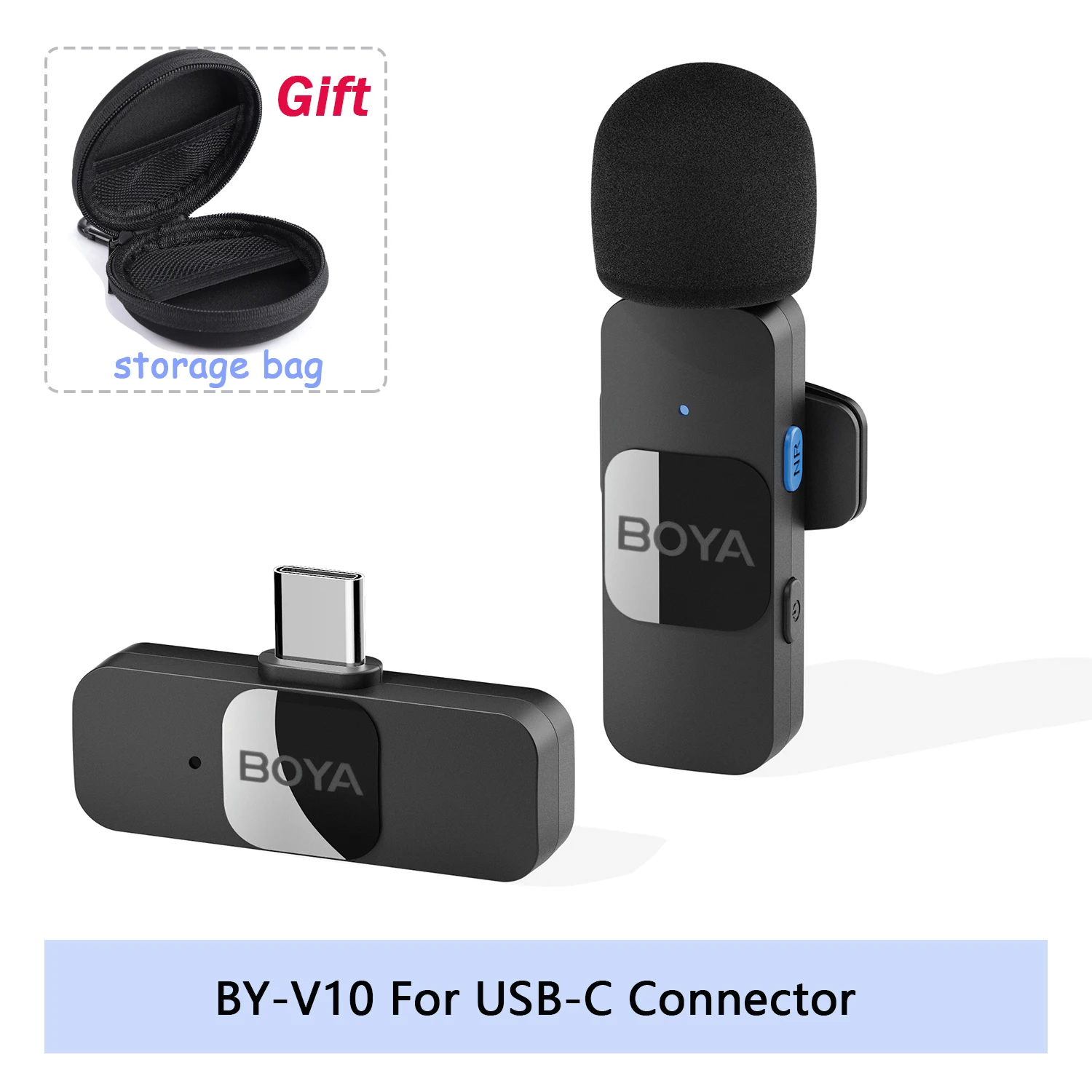

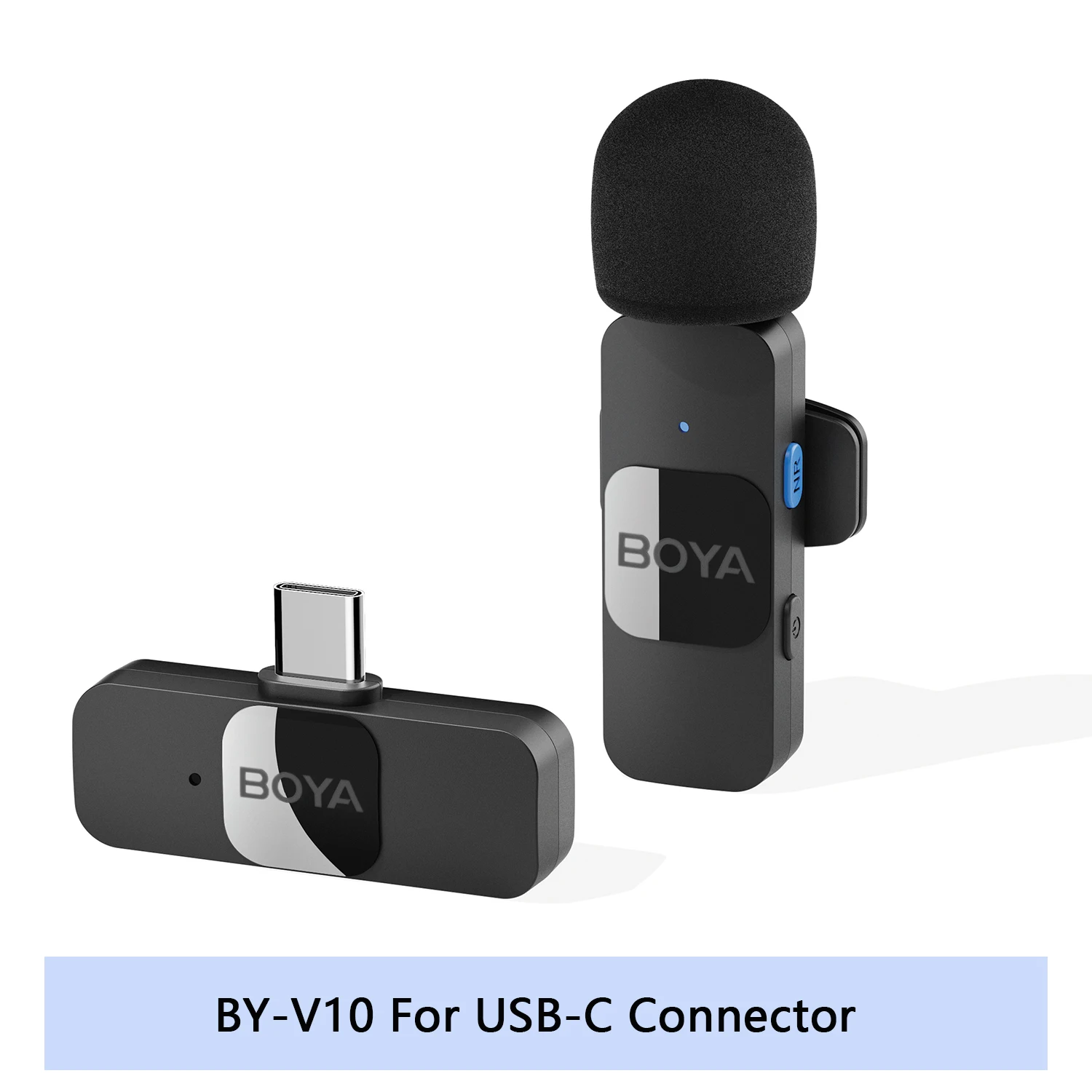

🎙️BY-V10. is compatible with most Android devices with USB-C ports, including smartphones and tablets. It has 1 transmitter and 1 receiver.

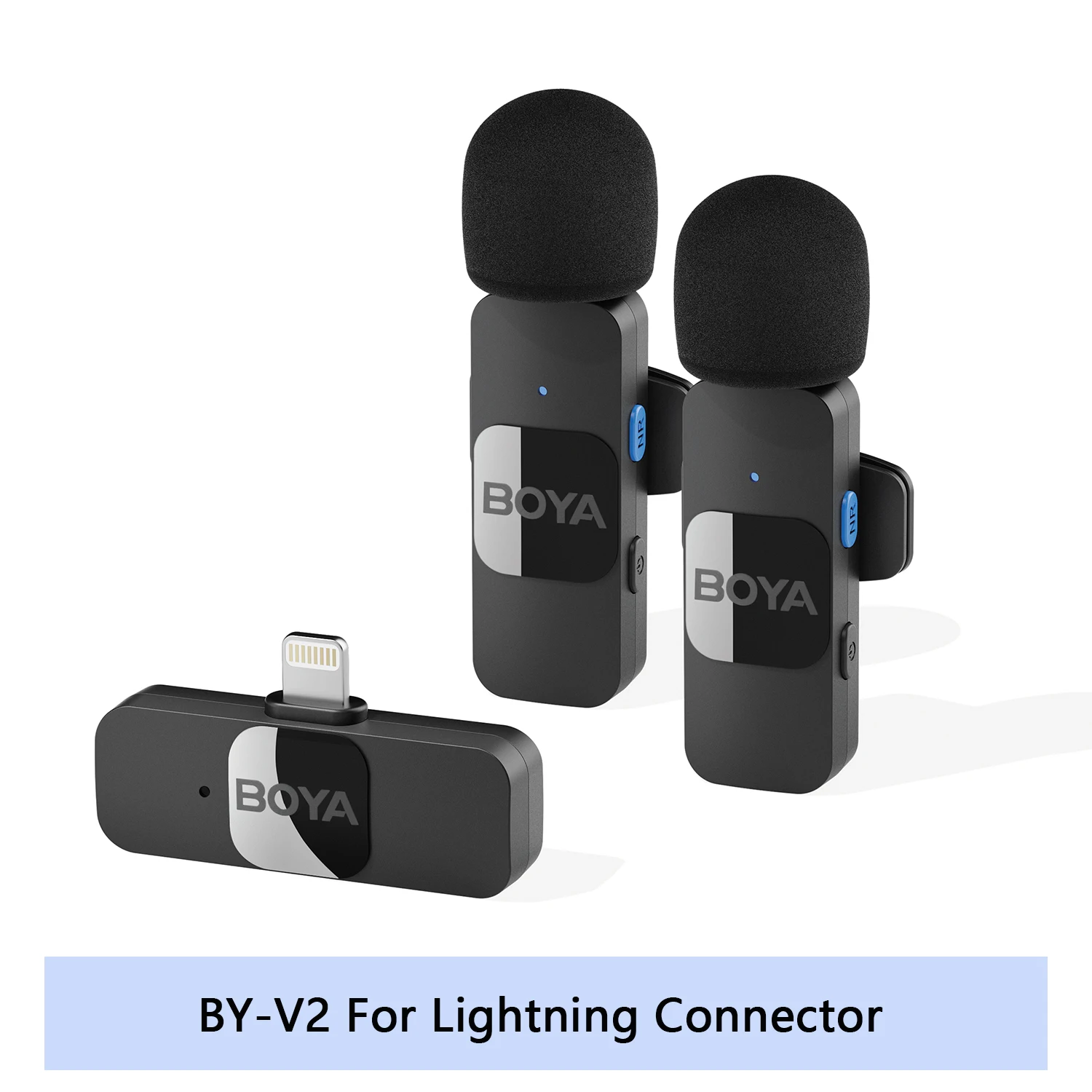

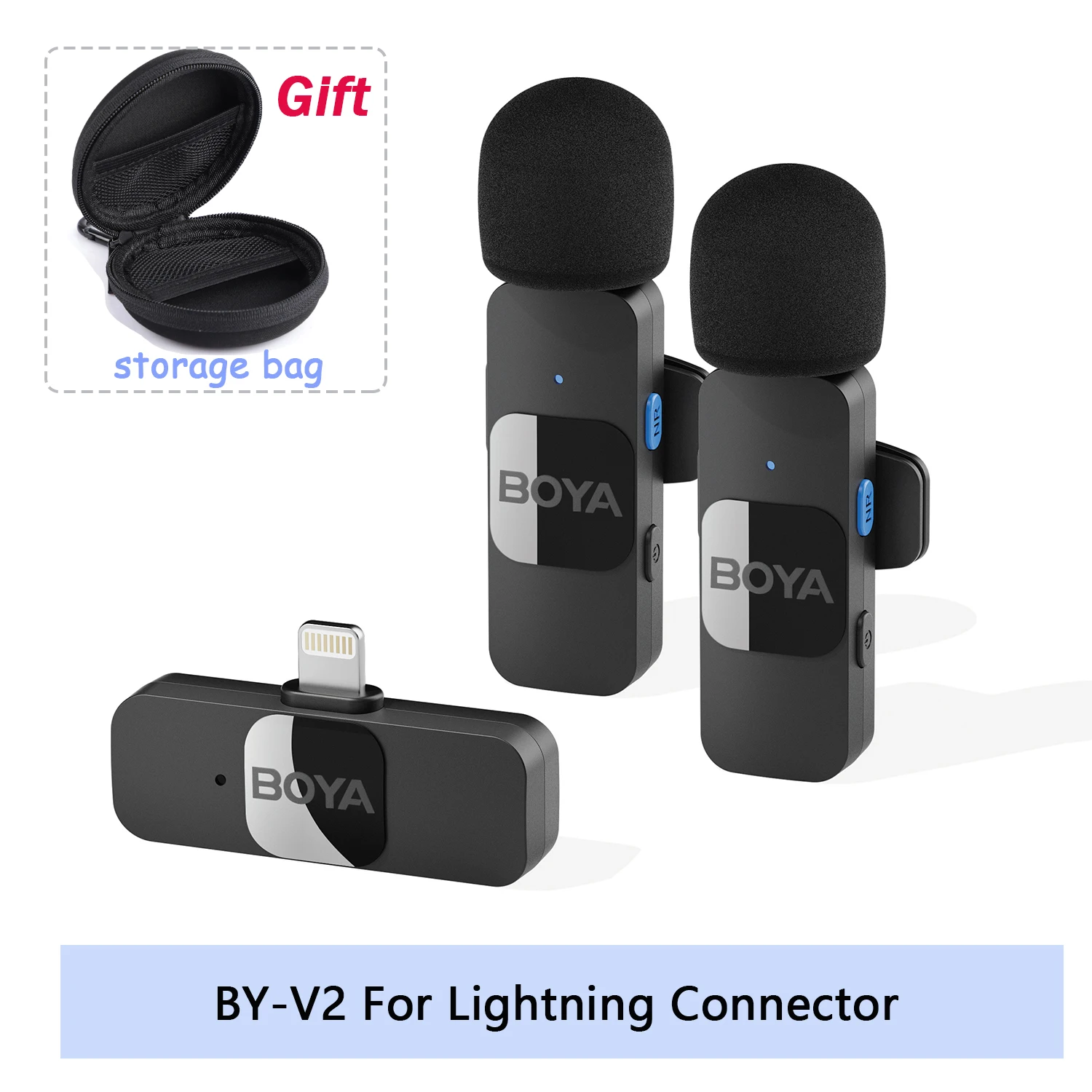

🎙️BY-V2. With an MFi Certified Lightning output, the BY-V2 is designed for Apple iOS devices. Including the 2 transmitters, it can record two sound sources at the same time.

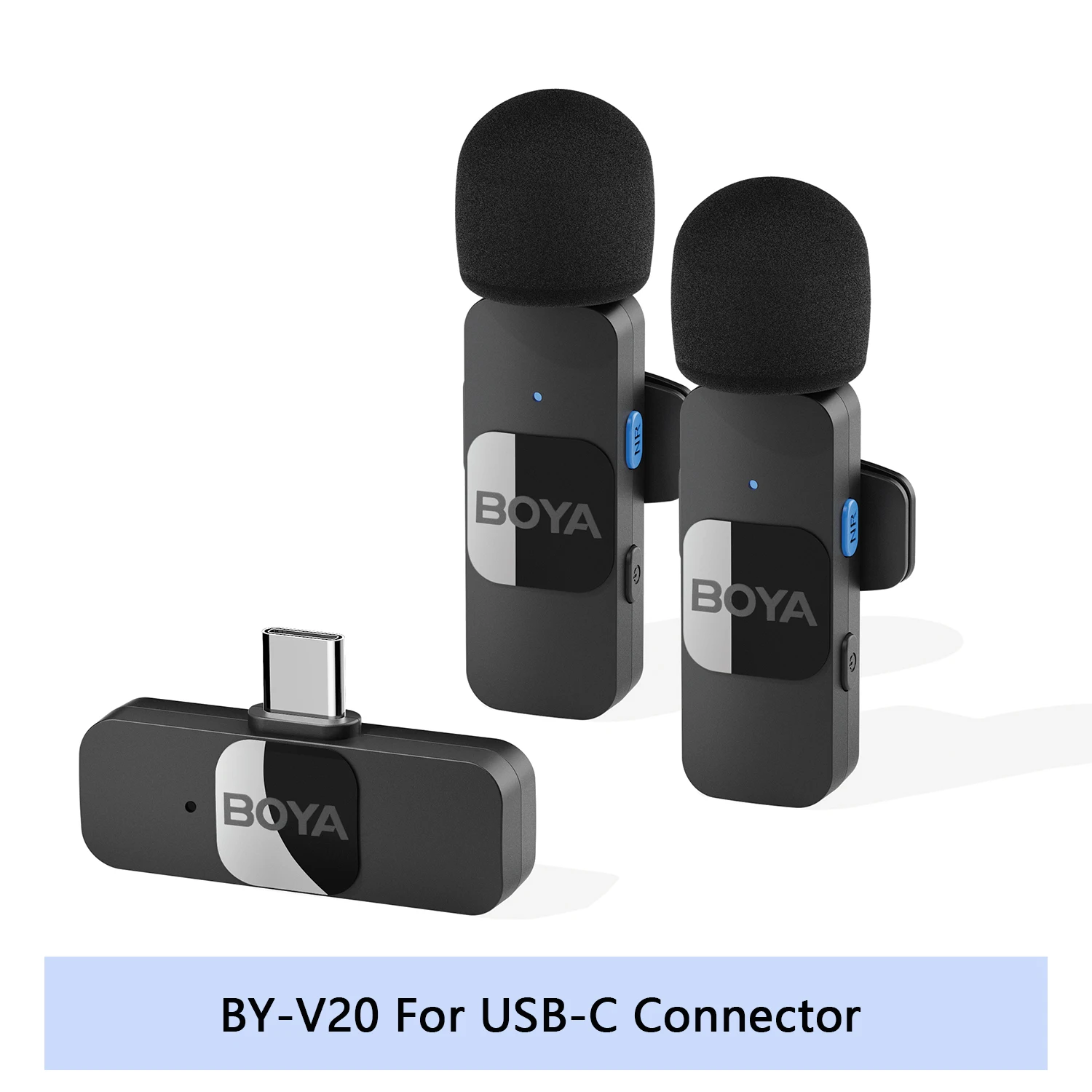

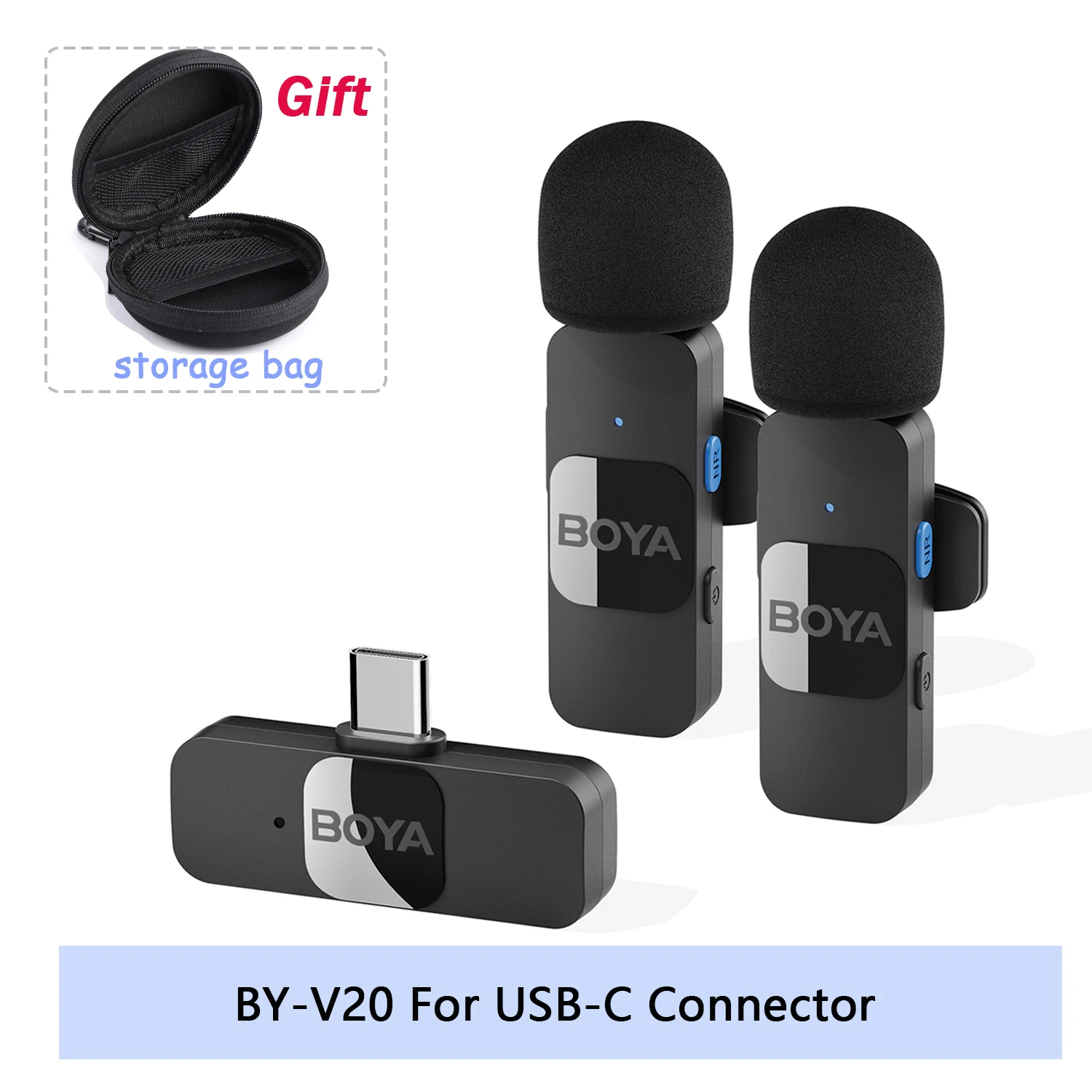

🎙️The BY-V20 is compatible with most devices with a USB-C port including Android smartphones and tablets. Including the 2 transmitters, BY-V20 can record two sound sources at the same time.

Tipes：BY-V10/BY-V20 belongs to the Type-c interface and is a microphone, which can support Dji OSMO Action 2/Dji OSMO Action 3 cameras, and can be used directly。Does not support DJI OSMO Action 1

Note: If it is used on Gopro, Insta360 and other sports cameras, it may not be suitable for the microphone of Type-c interface. You can consult the buyer in advance before placing an order, thank you

Transmission Type:2.4GHz
Poplar Pattern:Omnidirectional
Frequency Response:20Hz-16kHz
Signal-to-noise Ratio:80dB
Sensitivity:-42dB
Operating Range:50m (without obstacles
RF Output Power:6dBm

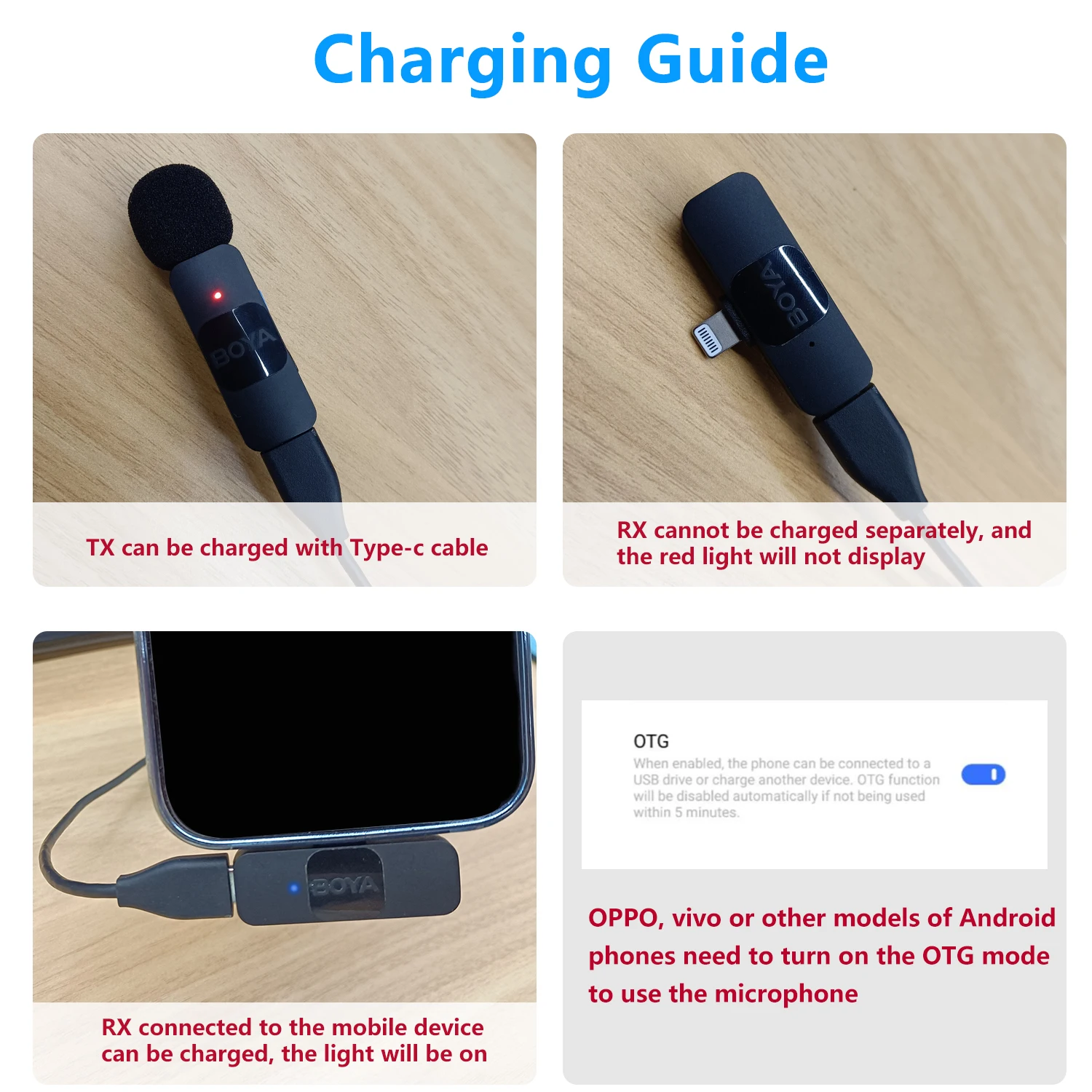

Charging Port:USB-C
Transmitter's Battery Capacity:95mAh

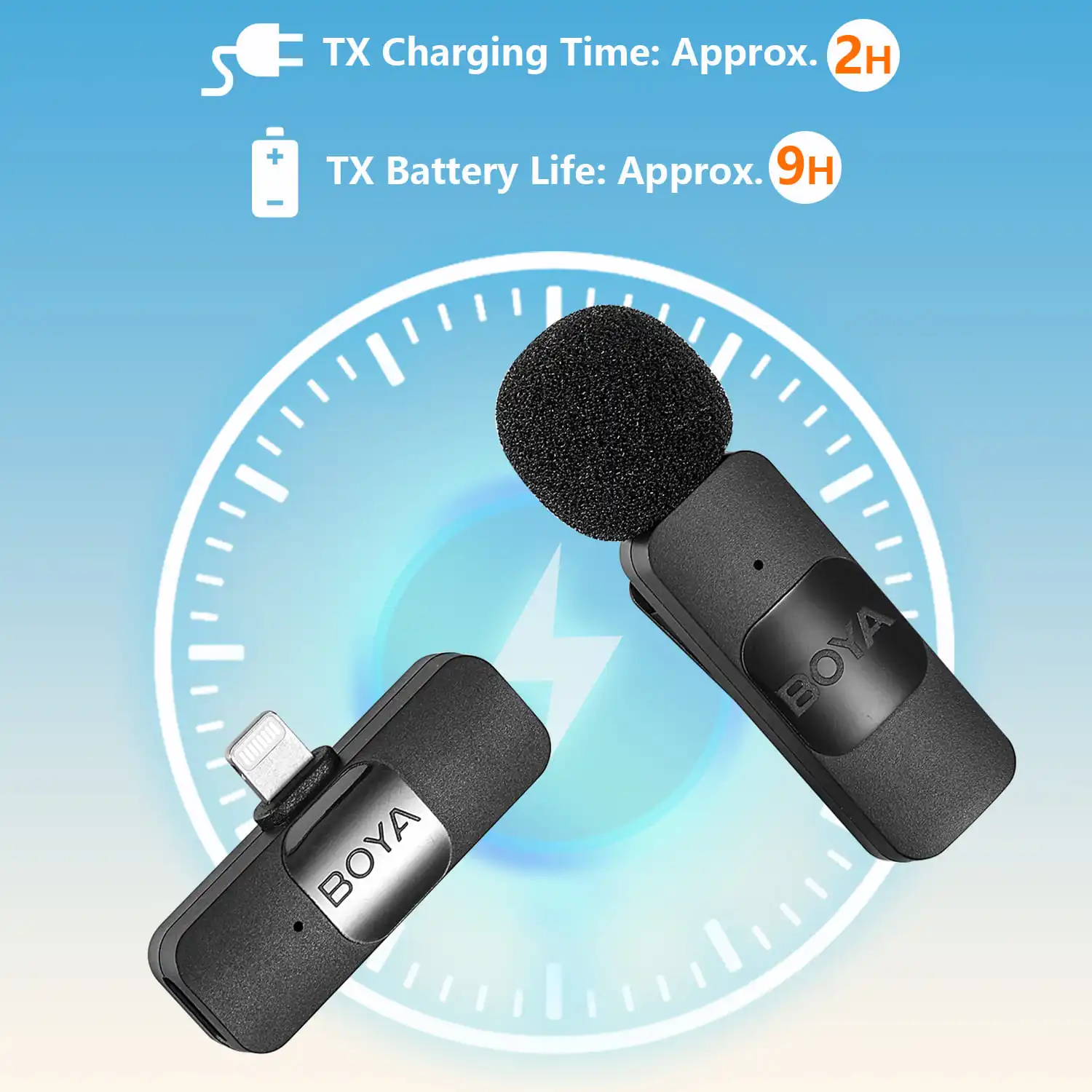

Transmitter's Charging Time:Approx. 2 hours
Transmitter's Battery Life:Approx.9 hours
Receiver's Power Requirement:Supplied by External Devices

BY-V1-TX/ BY-V2-TX: 9.5g
BY-V1-RX/ BY-V2-RX: 6g
BY-V10-RX/ BY-V20-RX: 6g
BY-V1-TX/ BY-V2-TX: 52.22×25.23×19.75mm
BY-V1-RX/ BY-V2-RX: 43.92×23.5×9.3mm
BY-V10-RX/ BY-V20-RX: 43.92×24.7×9.3mm

How to use

For the kit of BY-V1/ BY-V10
1.Press and hold the power button for 2 seconds to turn on the
BY-V1-TX transmitter.
2. Plug the BY-V1-RX into an iOS Lightning device or the BY-V10-RX into
a USB-C device.
3. Transmitter and receiver will be suCCessfully paired within 10
seconds
4. You are ready to record

For the kit of BY-V2/ BY-V20
1.Press and hold the power button for 2 seconds to turn on two
BY-V2-TX transmitters
2. Plug the BY-V2-RX into an iOS Lightning device or the BY-V20-RX into
a USB-C device.
3.Transmitters and receiver will be successfully paired within 10
seconds
4. You are ready to record

BY-V1

BY-V1-TXTransmitter x1
BY-V1-RX Receiver X
USB-C Charging Cable ×
Foam Windscreen ×1

BY-V2

BY-V2-TXTransmitter X2
BY-V2-RX Receiver x1
USB-C Charging Cable X2
Foam Windscreen ×2

BY-V10

BY-V1-TXTransmitter x1
BY-V10-RX Receiver ×
USB-C Charging Cable ×1
Foam Windscreen ×1

BY-V20

BY-V2-TX Transmitter ×2
BY-V20-RX Receiver x1
USB-C Charging Cable ×2
Foam Windscreen ×2
