Product Description:
DIY Supplies: woodworking, stainless steel, pipes
Power Source: work with the electric drill
MAX RPM : 1000 RPM
Min Torque Strength: 15 N.m
Material: Carbon steel and plastic
Color: Blue, Black
Full length: Approx. 160mm
Method of operation:
1. Turn on the electric drill
2. Connect the electric drill
3. Install the auxiliary handle
4. It needs to be rotated counterclockwise to the end before inserting the rivet
5. Put in the correct rivets
6. Pull out the rivet clockwise
7. Exit the rivet counterclockwise
Note:
1. When using the rivet gun adapter, you need to hold the front handle to work normally.
2. Rivets above M5x20 / 3.2×20 / 2.4×20 cannot be used.
3. Stainless steel rivets cannot be used.
4. If you don't follow the procedure, the nail will be stuck or the nail cannot be pulled.
5. If the rivet cannot be removed, please unscrew the socket head and press it with a wrench to pull it out.
If you encounter any problem, please contact the customer service in time.
Rivet gun adapter
Easily change your electric drill into an electric rivet gun
Easily pull the rivets, no need to spend a lot of effort
Fast and convenient·saves time and effort· and is durable
Easy installation
The hexagonal screw can be used after it is connected to the drill.
Made of aluminum alloy, painted on the surface, rust-proof, durable
The guide can be replaced according to the size of the rivet
Easy and fast operation
Product portfolio structure :
1.Aluminum Alloy
2.CR-V Hex Handle
3.High Carbon Steel Gun Core
4.Strong Spring
5.High Carbon Steel Spring Core
6.Alloy Steel Claw
7.Chrome Vanadium Steel Conversion Gun Head
8.High Carbon Steel Nozzle
Package list

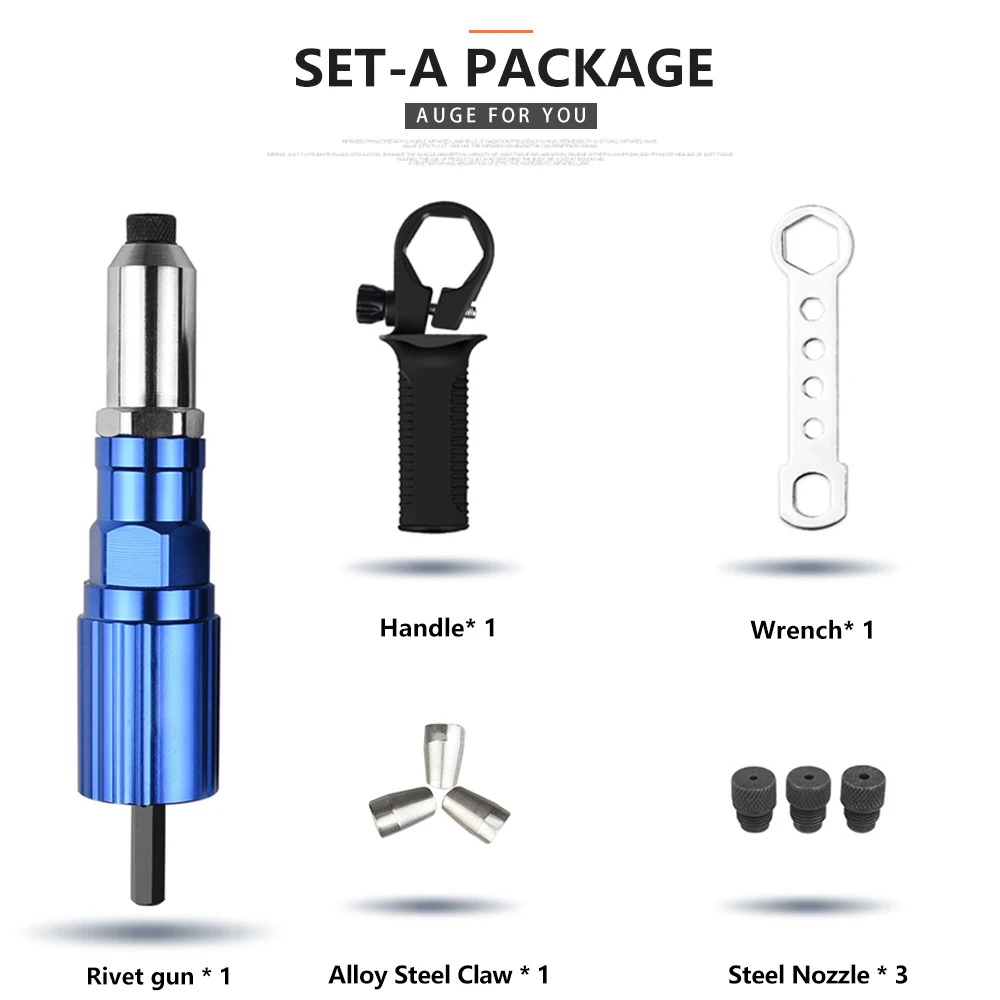

SET-A
1 x Rivet Adapter
1 x Auxiliary handle
4 x Rivet heads
1 x Mini wrench
1 x Alloy Steel Claw

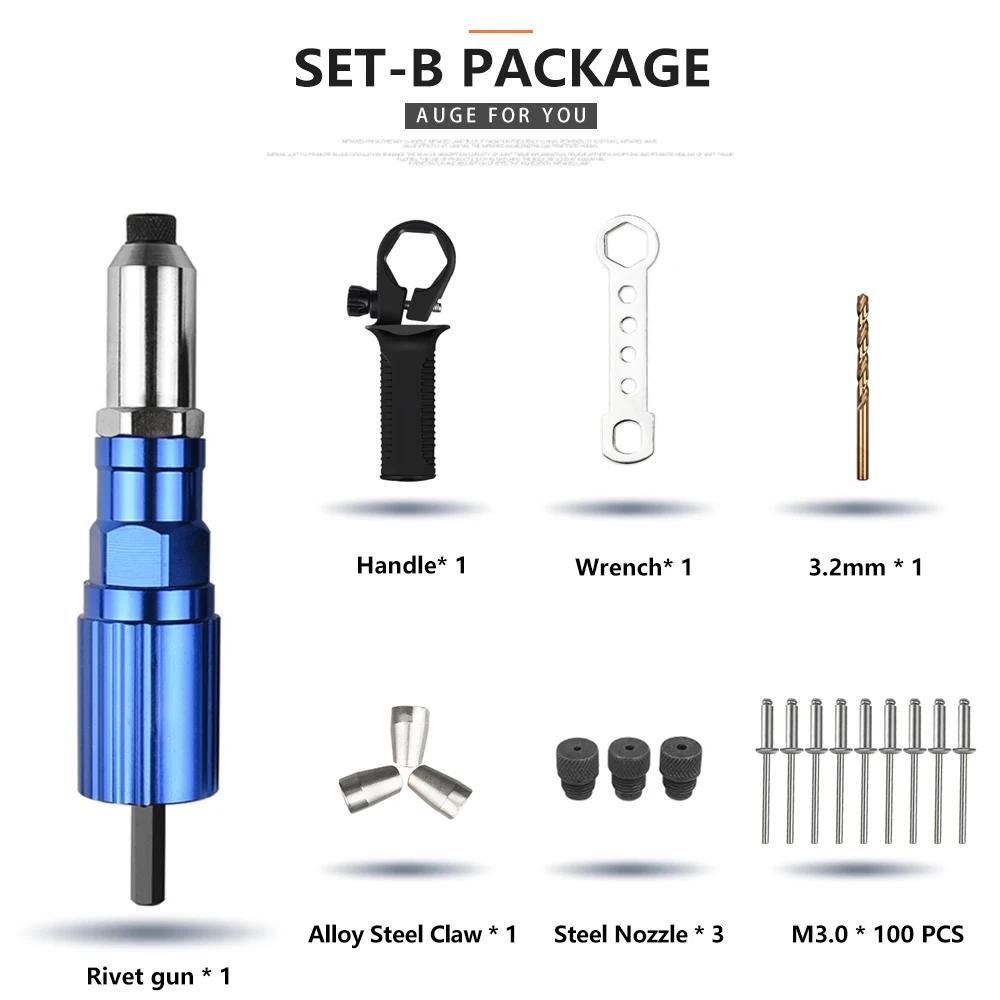

SET-B (M3.2):
1 x Rivet Adapter
1 x Auxiliary handle
4 x Rivet heads
1 x Mini wrench
1 x Alloy Steel Claw
1 x Twist drill （3.2mm）
100 x Rivet （M3.2）
SET-C (M4):
1 x Rivet Adapter
1 x Auxiliary handle
4 x Rivet heads
1 x Mini wrench
1 x Alloy Steel Claw
1 x Twist drill （4.2mm）
50 x Rivet （M4.0）
SET-D (M5):
1 x Rivet Adapter
1 x Auxiliary handle
4 x Rivet heads
1 x Mini wrench
1 x Alloy Steel Claw
1 x Twist drill （5.0mm）
50 x Rivet （M5.0）
SET-E (M3.2+M4.0+M5.0):
1 x Rivet Adapter
1 x Auxiliary handle
4 x Rivet heads
1 x Mini wrench
1 x Alloy Steel Claw
3 x Twist drill （3.2mm + 4.2mm + 5mm）
100 x Rivet （M3.2+M4.0+M5.0）
