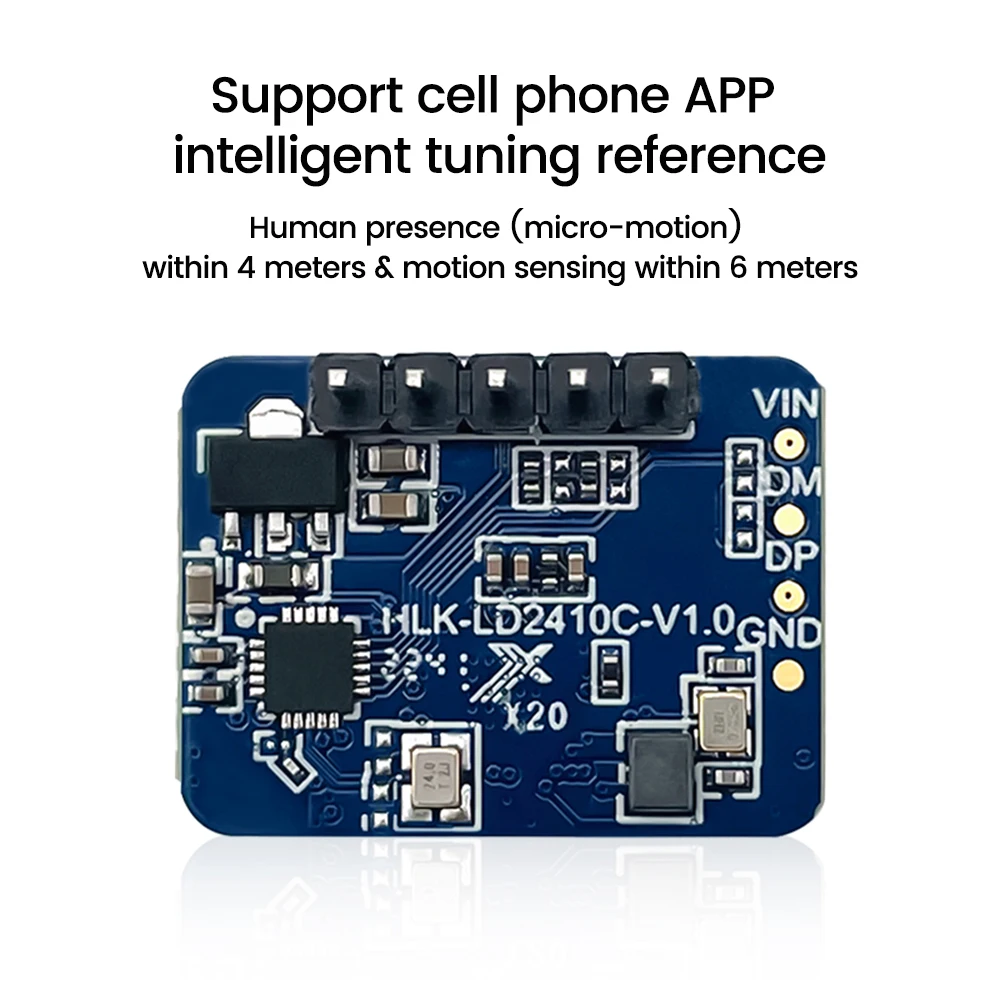

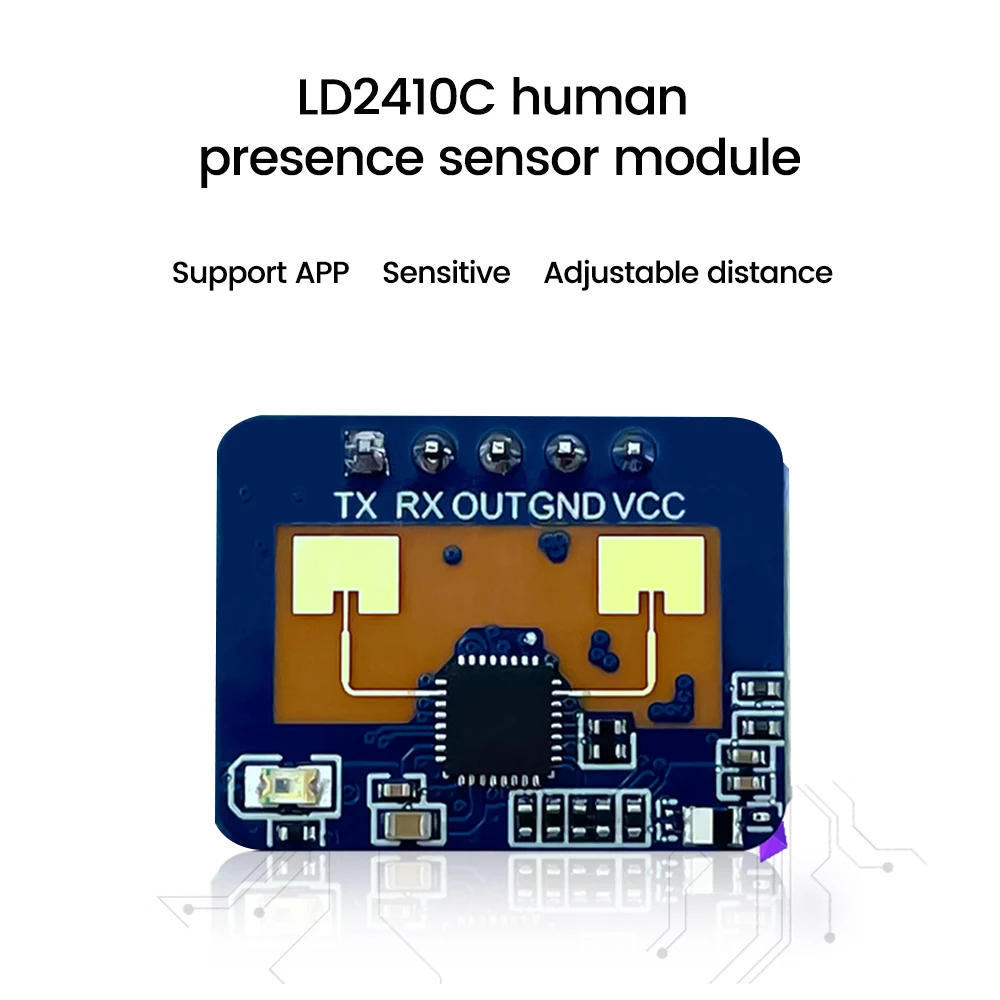

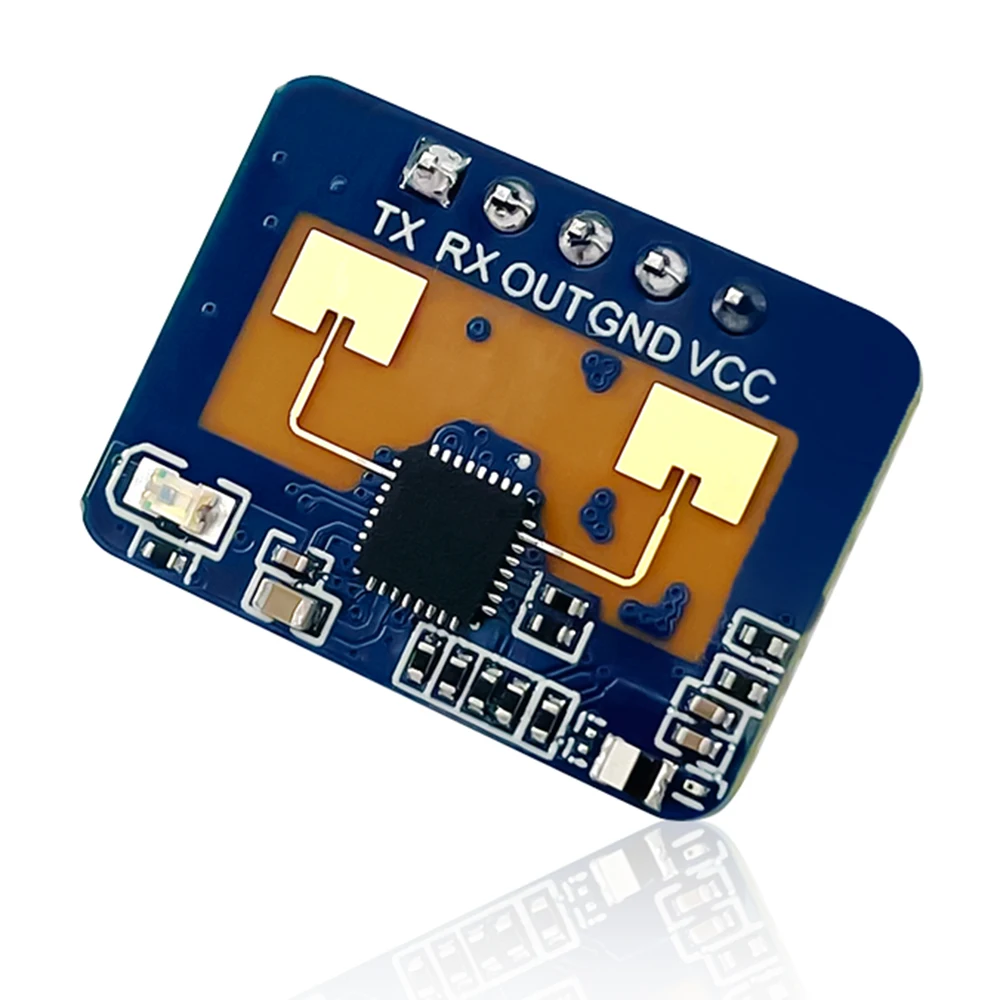

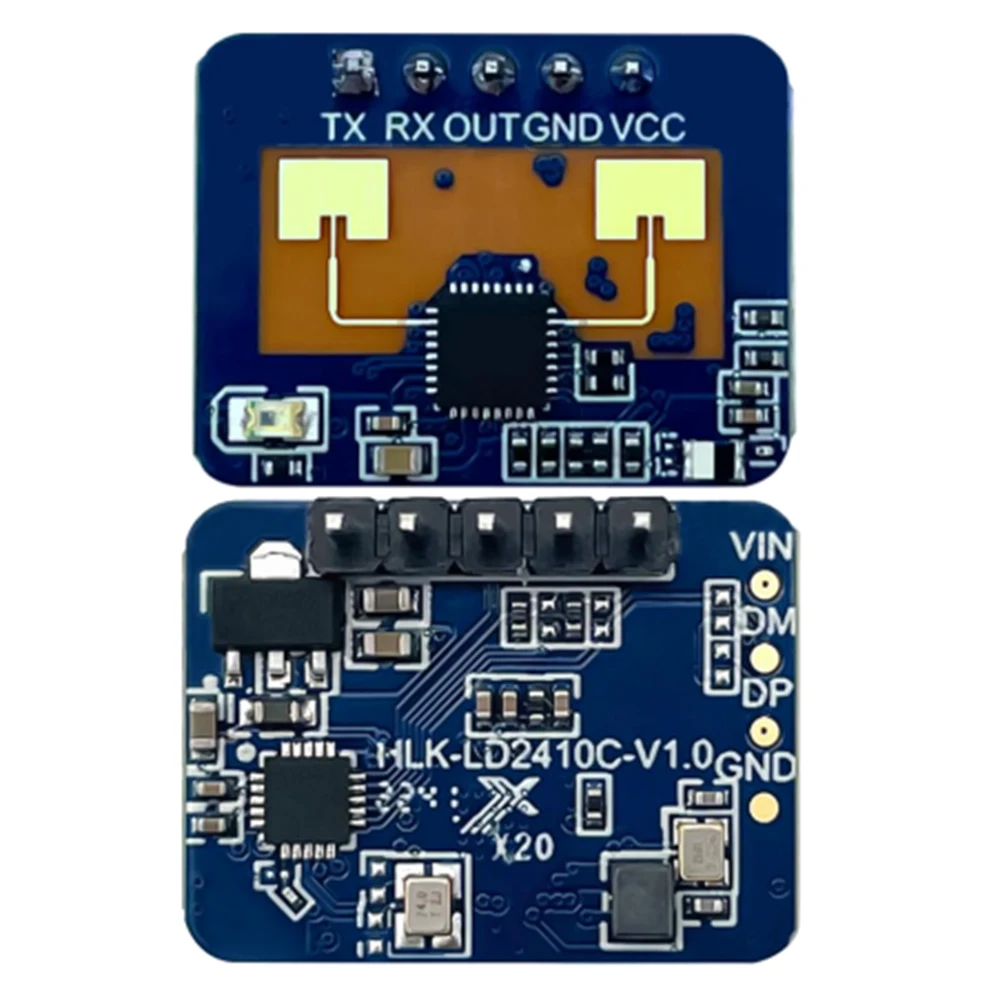

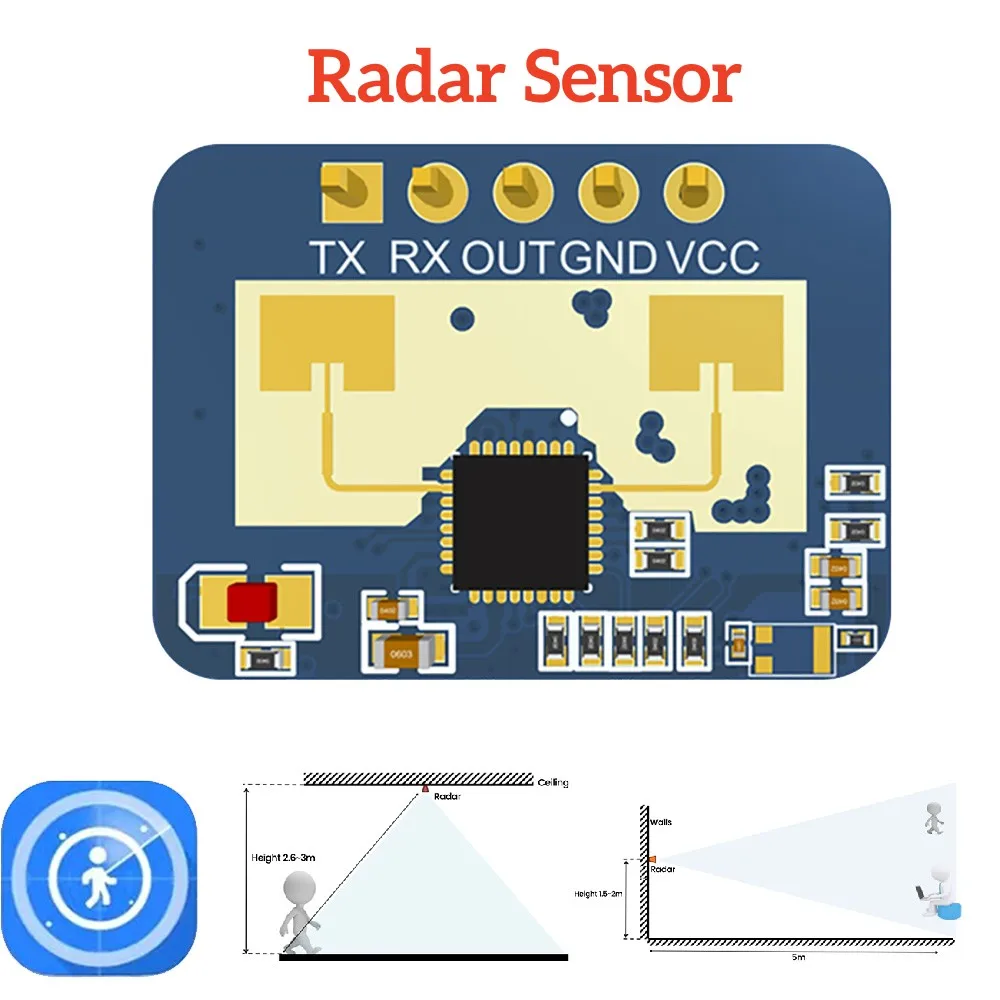

HLK-LD2410C 24G mm Wave FMCW Millimeter Wave 5M Human Presence Status Radar Sensor Motion Detection Module High Sensitivity Cabl
Features
1. Plug and play, easy assembly
2. The farthest sensing distance is up to 5 meters
3. Large detection angle, coverage up to +60°
4. Accurate identification within the interval, support the division of sensing range, and shield the interference outside the interval
5. Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial C to meet the needs of scene changes

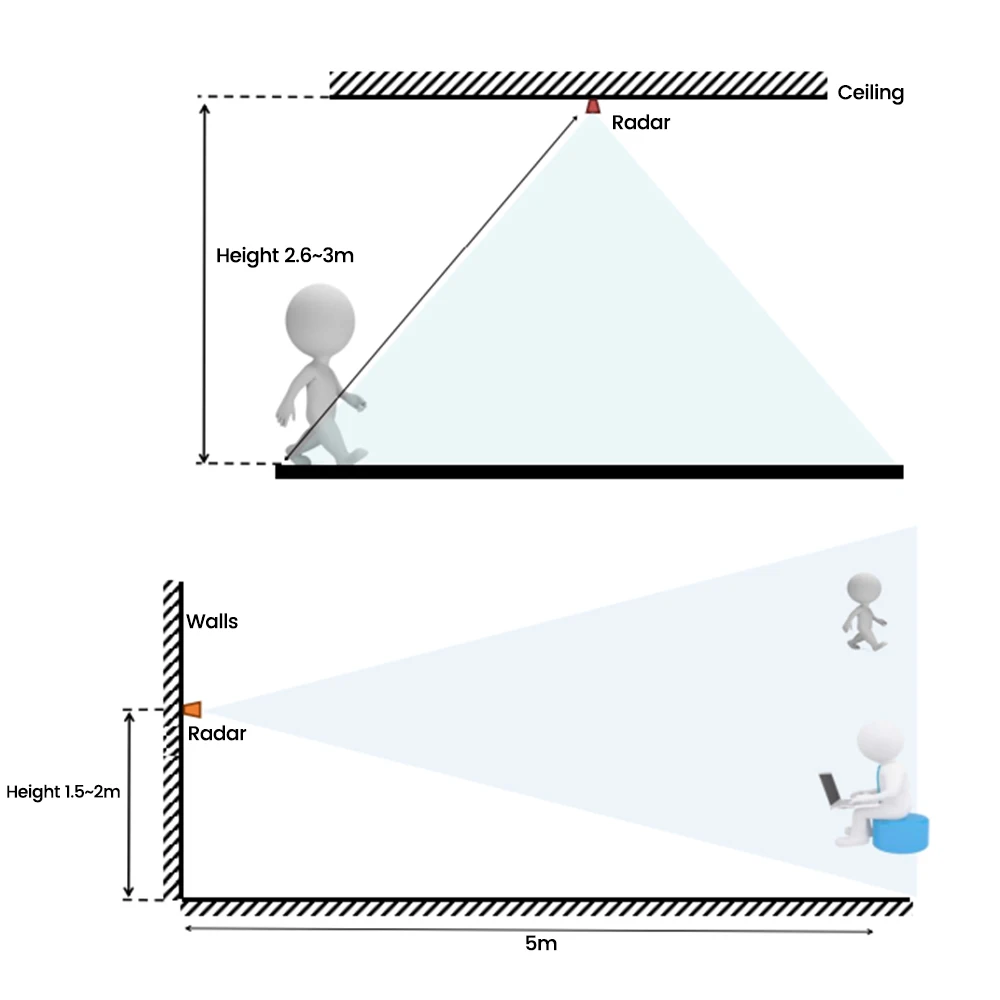

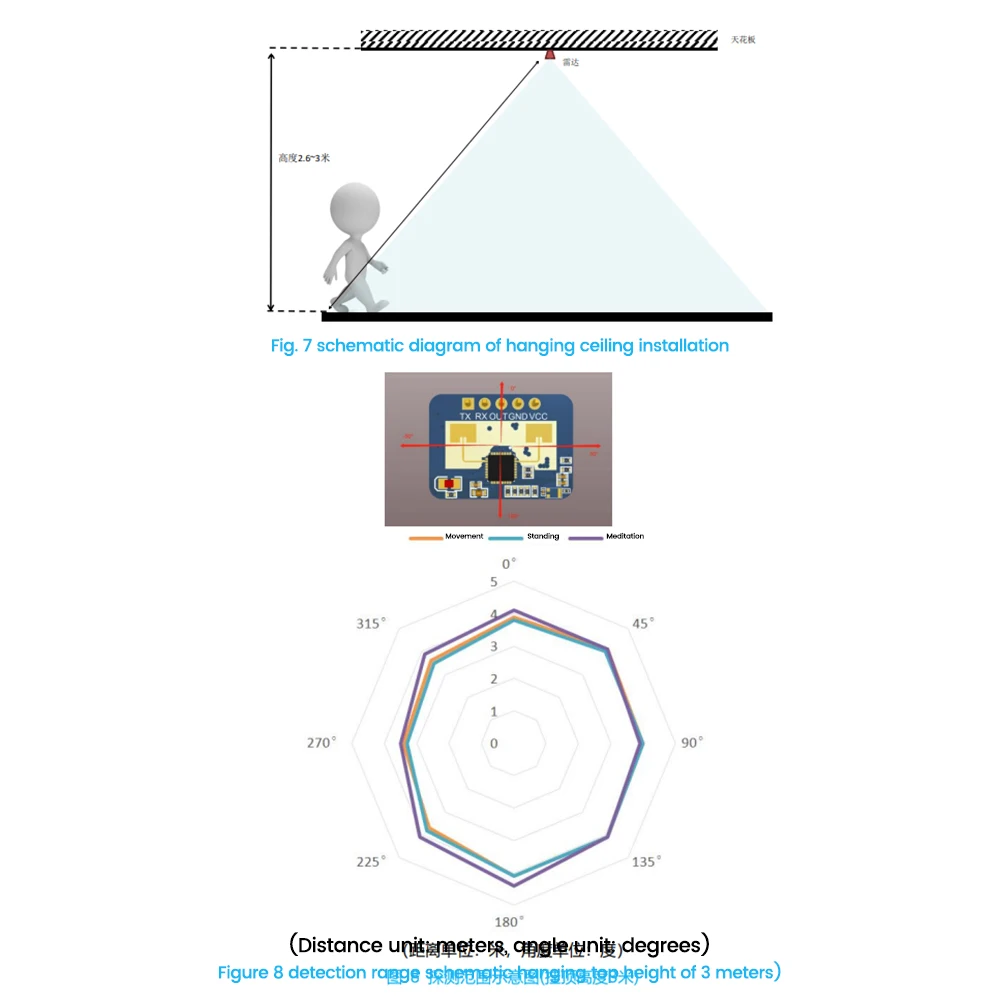

6. Visual debugging and configuration tools, support various installation methods such as ceiling and wall
Product parameters
Working frequency band: 24GHz~ 24.25GHz
Power supply requirements: DC 5V, power supply capacity> 200mA
Average operating current: 79 mA
Modulation method: FMCW
Target application: human presence sensing
Detection distance: 0.75m~ 6m, adjustable
Detection angle: +60°
Distance resolution: 0.75m
Sweep bandwidth: 250MHz
Ambient temperature: -40 ~ 85°C
Dimensions: 16mm x 22mm
Shipping list

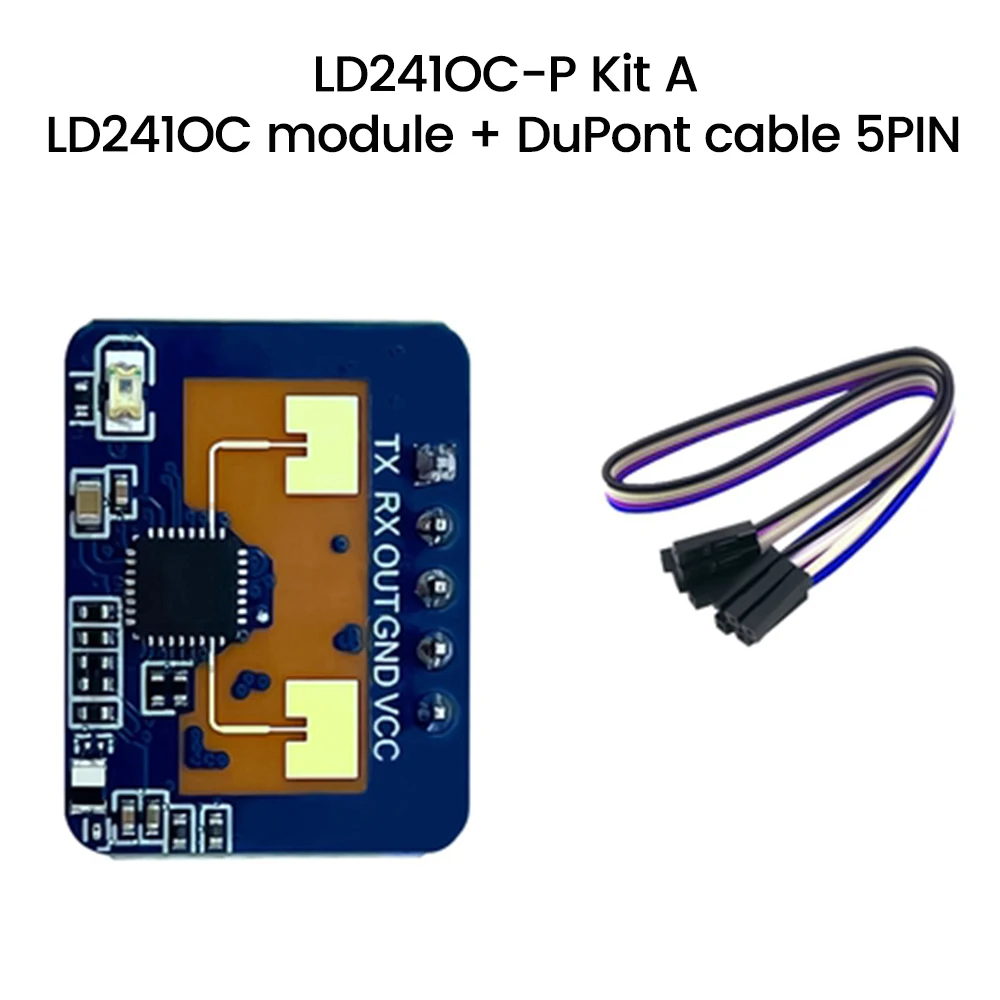

Package A:
Sensor modulex1
DuPont linex1

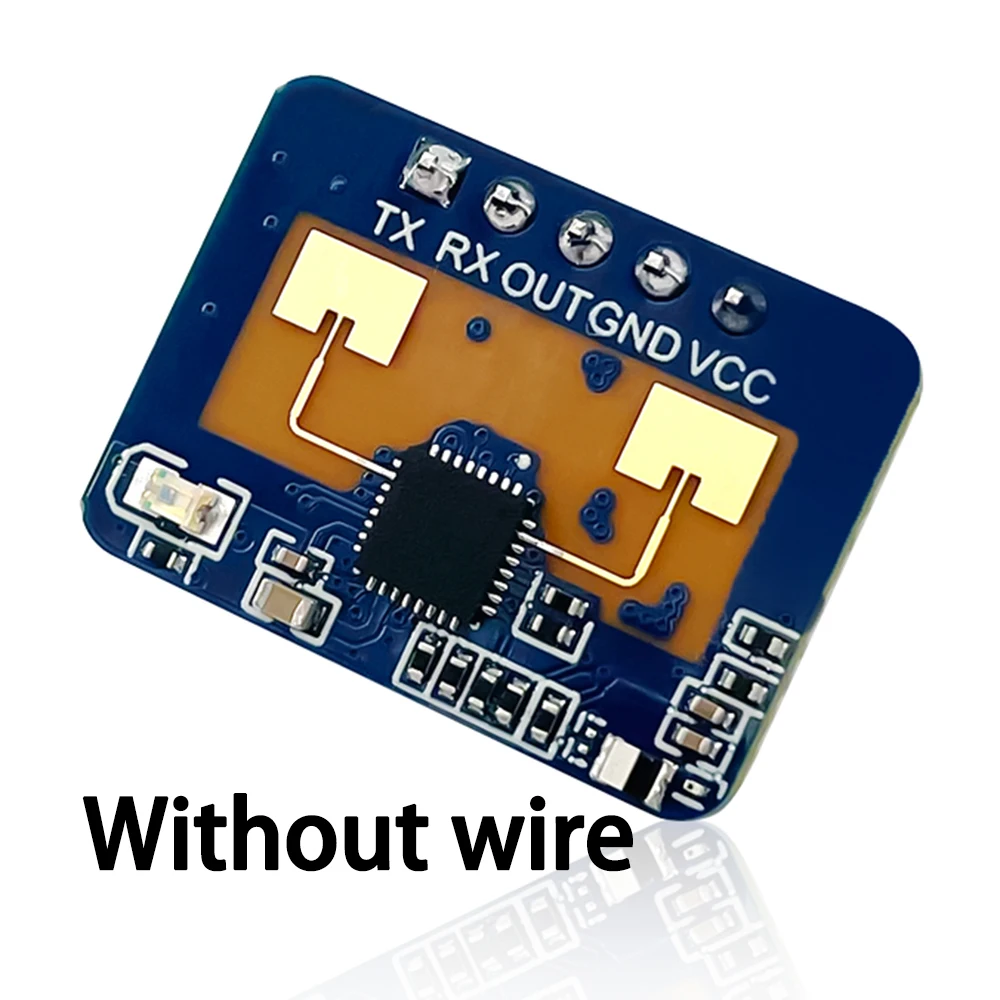

Package two:
Sensor modulex1
