• LED Connectors in L Shape :The LED connectors in L shape make it easy to connect multiple LED strips without the need for soldering.
• Solderless Adapter Connector Terminal :The solderless adapter connector terminal allows for quick and easy installation of the LED connectors without the need for soldering.
• 10mm Wide Right Angle Corner Connectors :The 10mm wide right angle corner connectors provide a secure and stable connection for the LED strips.
• Compatible with 3528/5050 SMD RGB :The LED connectors are compatible with 3528/5050 SMD RGB, allowing for a wide range of colors and lighting effects.
This connector set for RGB LED light strips comes with easy-clasp connector clips and 90 degrees L shape PCB boards. You can attach them with your light strips directly without any tools or welding operations. The unwired design ensures a gapless layout when you need to turn your LED strips around sharp corners. They are compatible with both non-waterproof and waterproof 4-pin light strips.
Features:

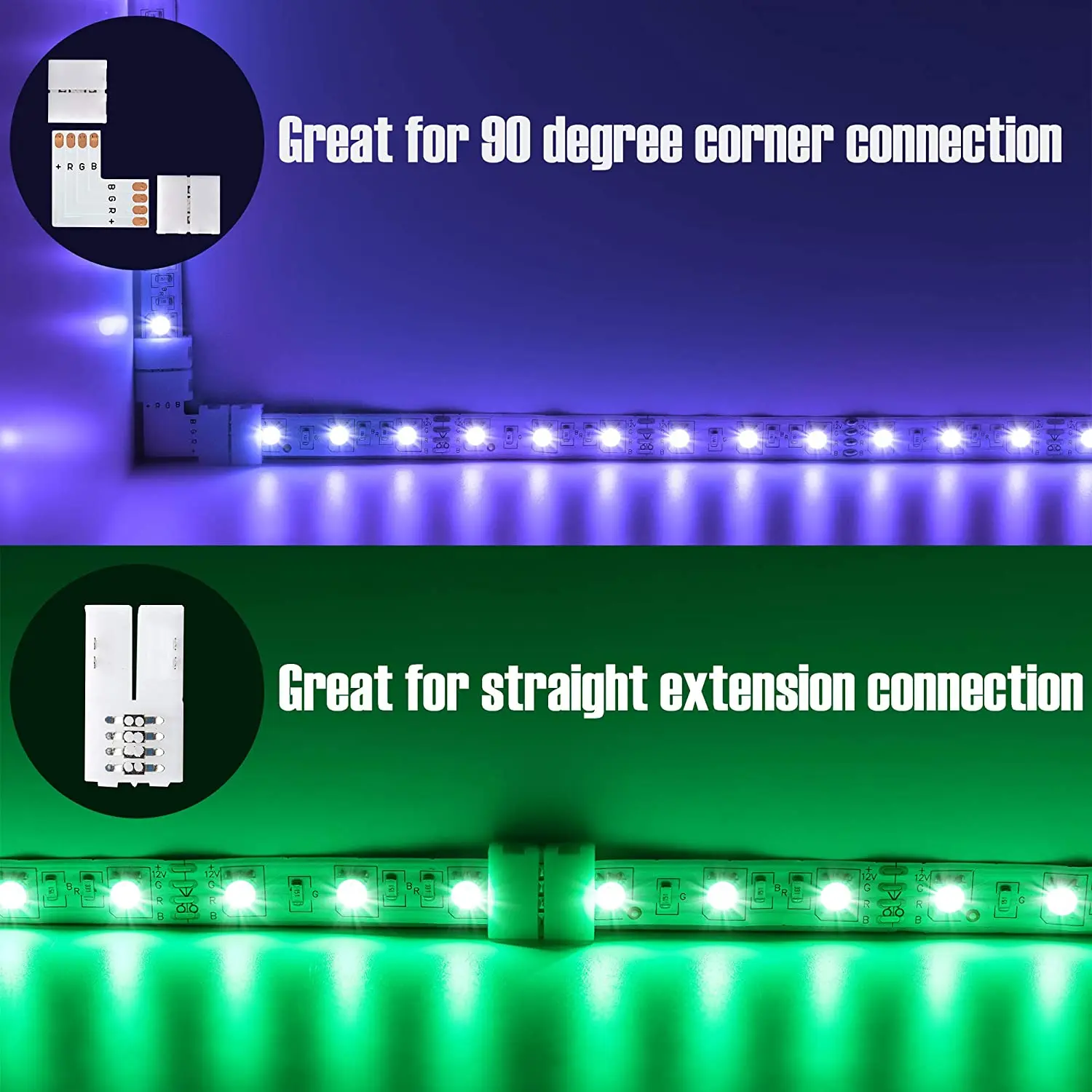

• Dual Purposes: This connector kit comes with detachable L sheets and straight couplers, perfect for both 90 degree corner connections and extensions along a straight line.

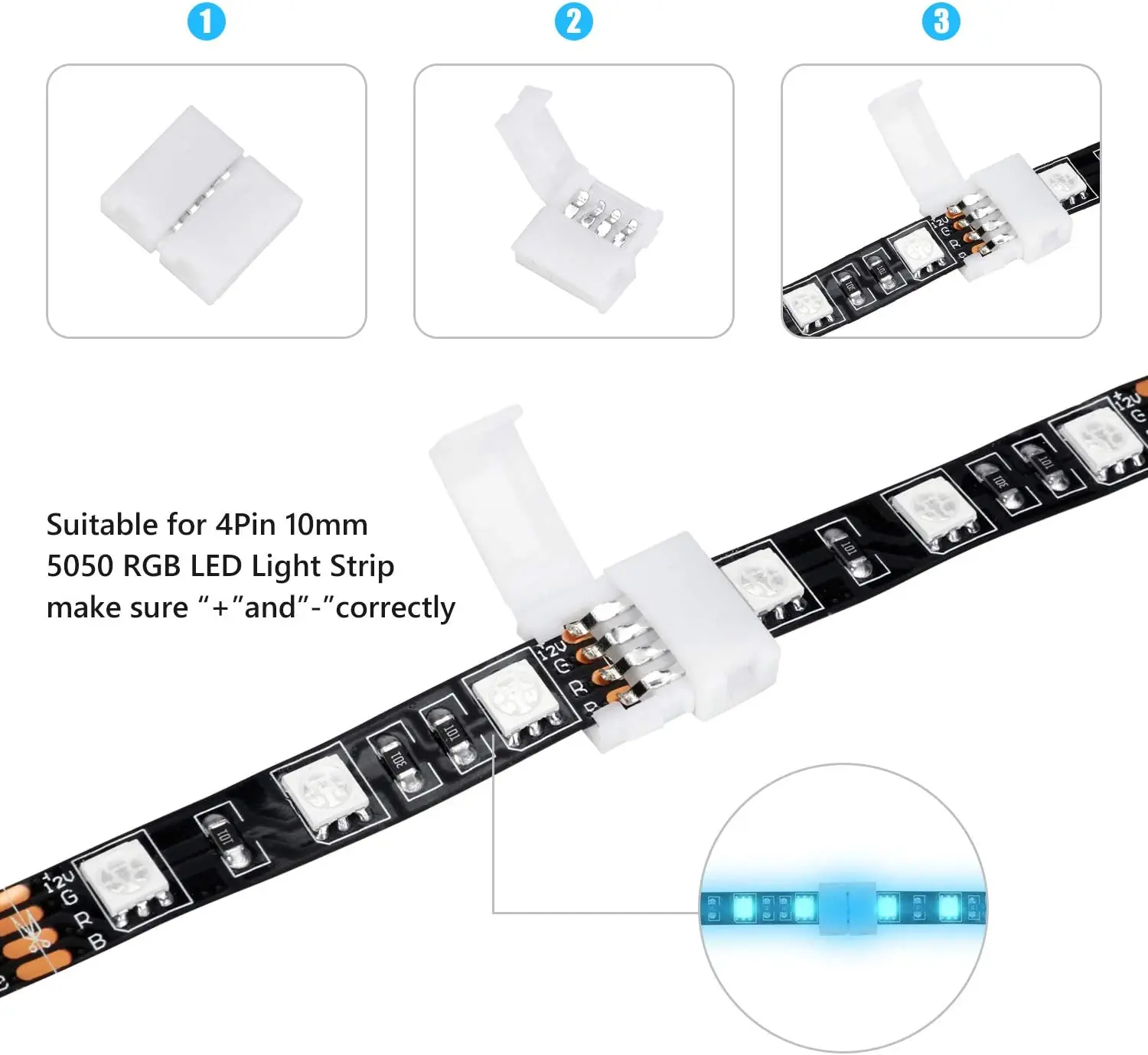

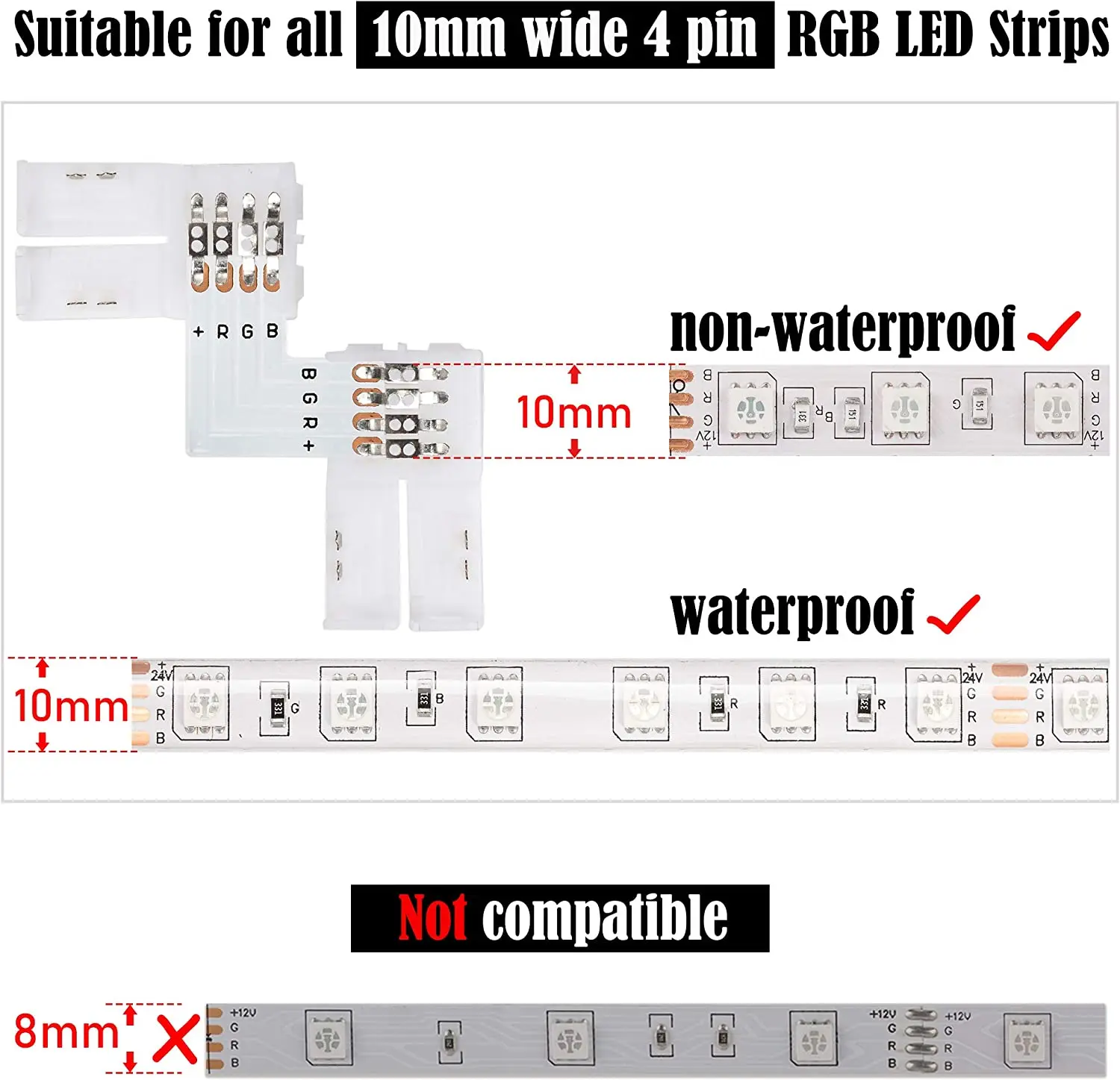

• For All 4 Pin Light Strips: Work with any 4-pin 10mm (0.39in) wide SMD 3528/5050 multicolor LED flexible strip lights, whether they are waterproof ones or non-waterproof lights for indoor use.
• Solderless Solution: Create a quick shunt, solid connection without the hassle of soldering. Just slide the light strip under the connector’s pins and snap the clip.

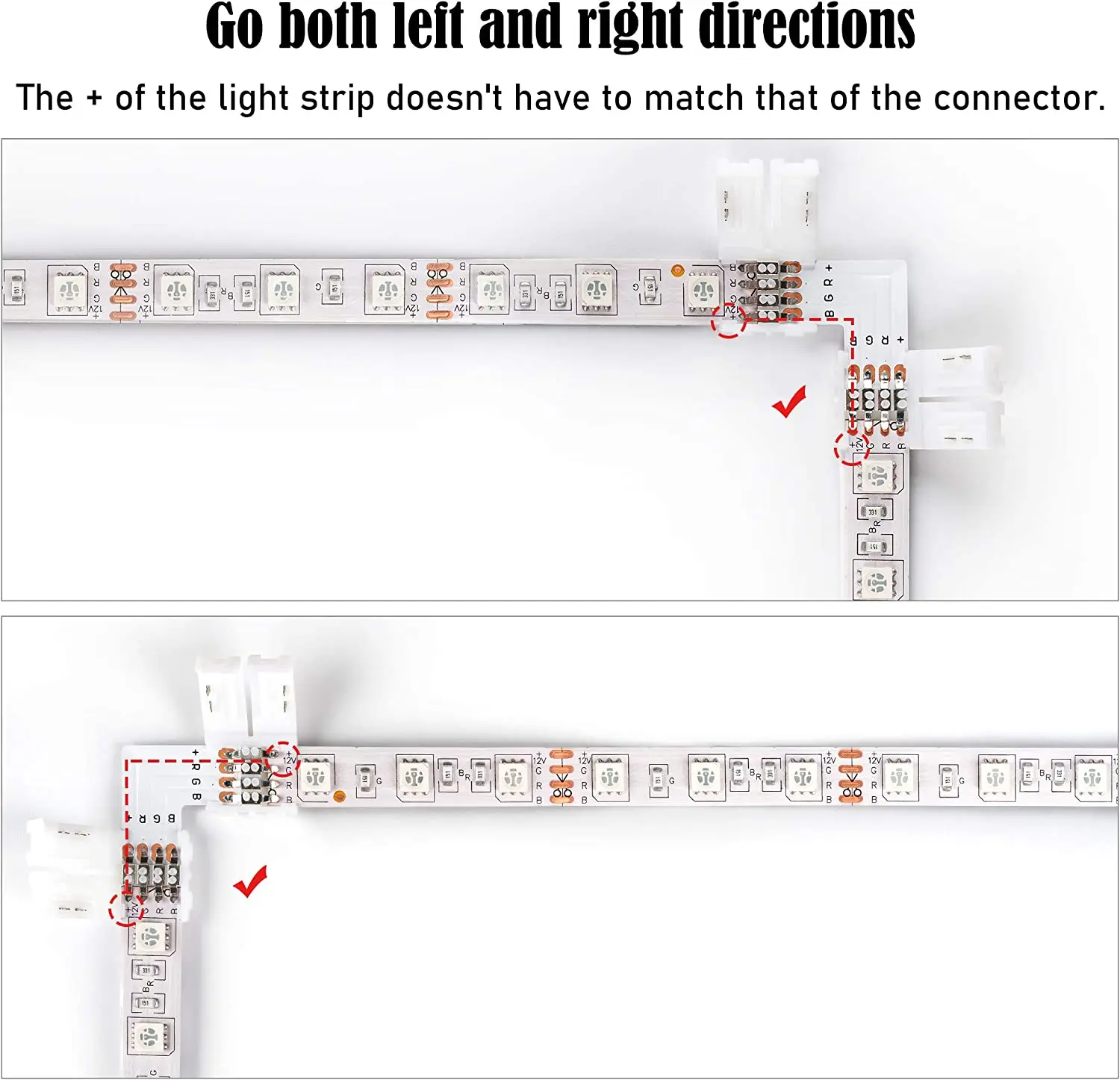

• Go Both Left and Right: No matter in what orders are the RGB+ marked on the connectors, the connection work as long as the + of the light strips on both sides are aligned.
Specification:

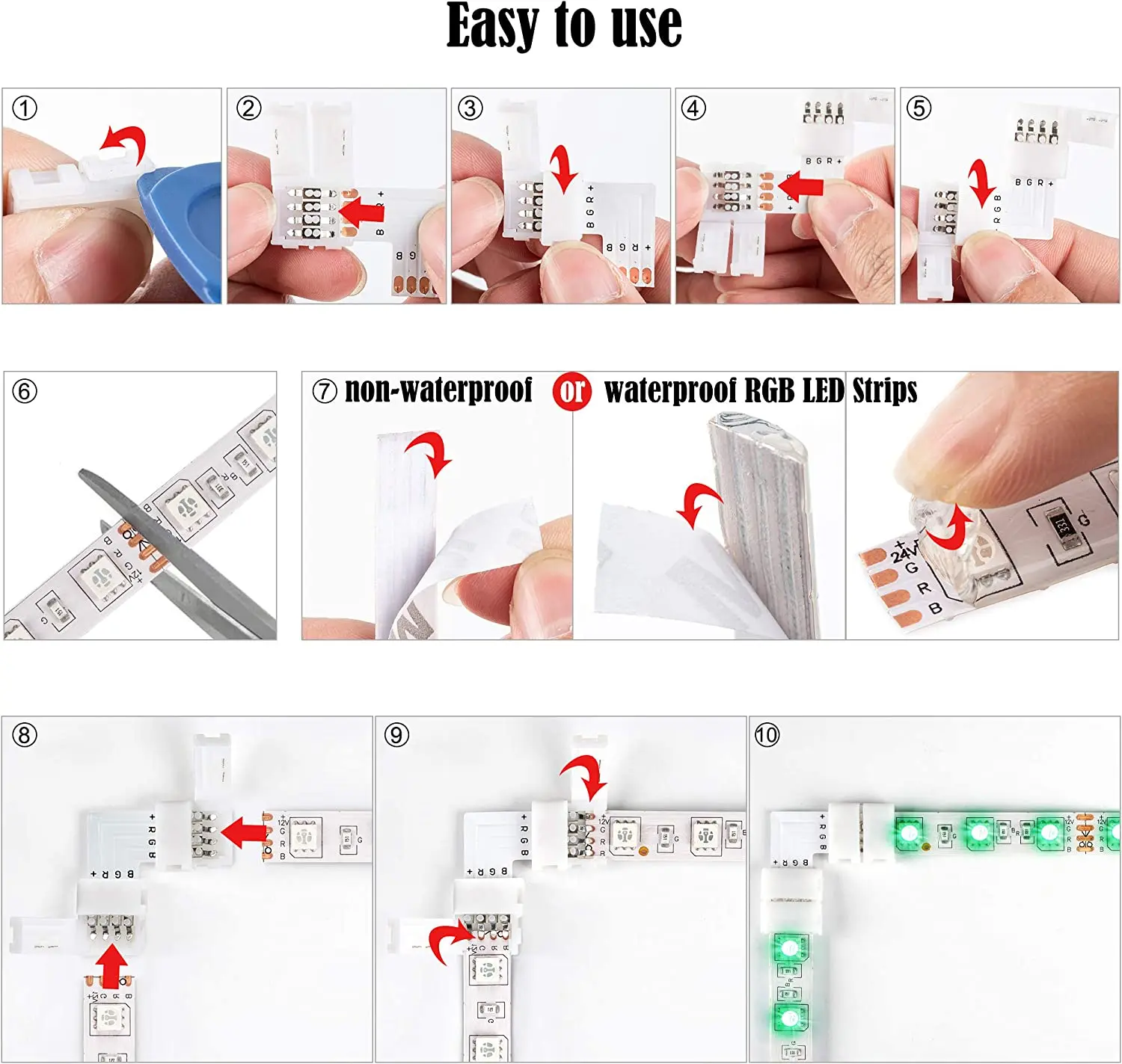

Installation Instructions:
1.Ensure your section of LED light strip has (+) contacts is clean
2. Open the white clasp of the connector
3. Insert the LED light strip into the clasp, under the prongs – making sure to match the + and – on the strip to the + and – on the clasp
4.Close the clasp
5. Gently pull on the LED light strip to confirm you’ve made a solid connection
6. Your connection is made!
Package:

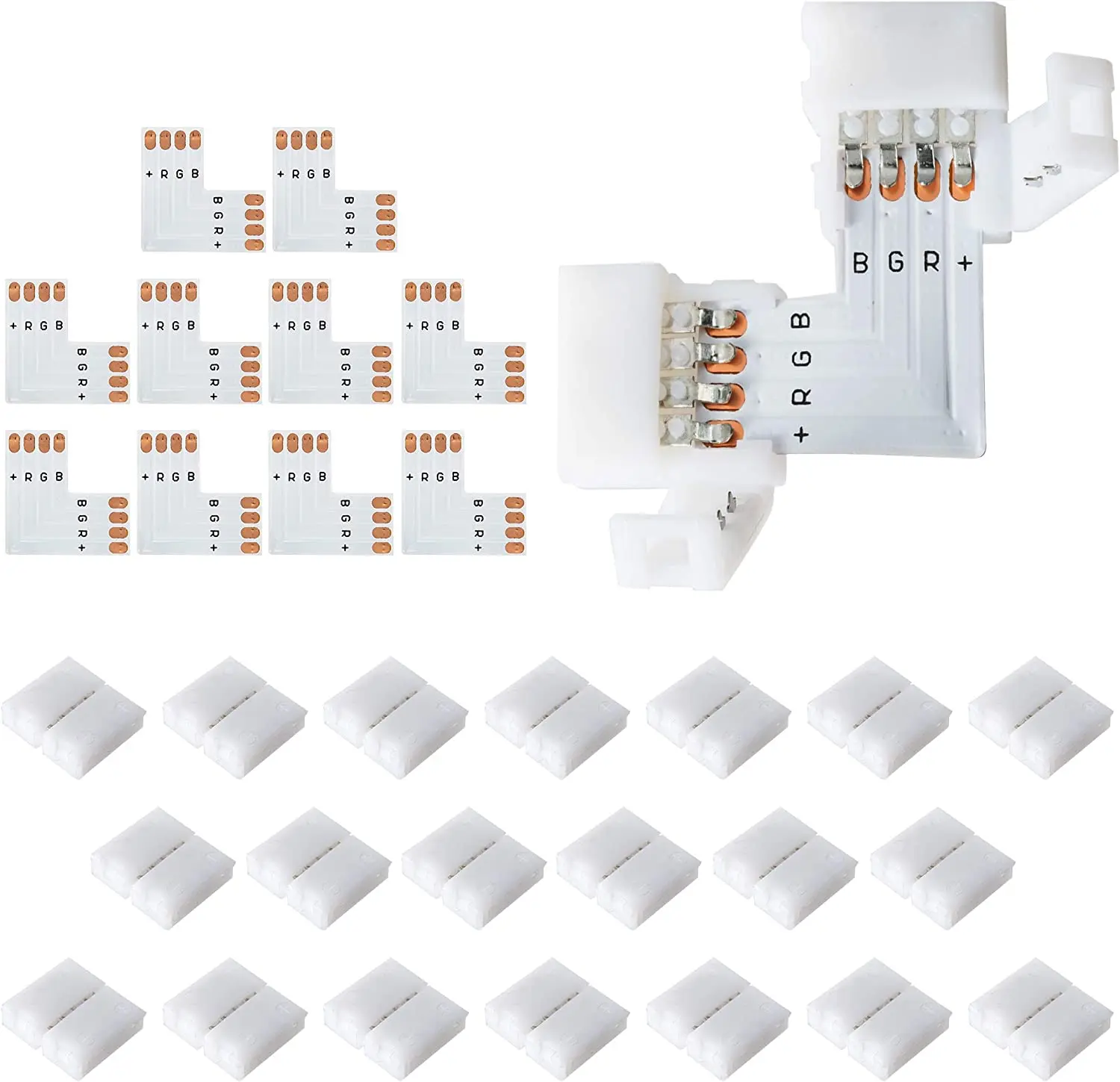

10X L Shape 4-Pin LED Connectors 10-Pack JACKYLED 10mm Wide Right Angle Corner Connectors / 4 pin connectors
1. Key away from Fire
2. Due to including small parts,please keep away from Children under Three.
3. Please leave 5 star feedback if you’re satisfied with our products and service, we will appreciate it
4. If the products you received was damaged or any more question, please feel free to contact us.
