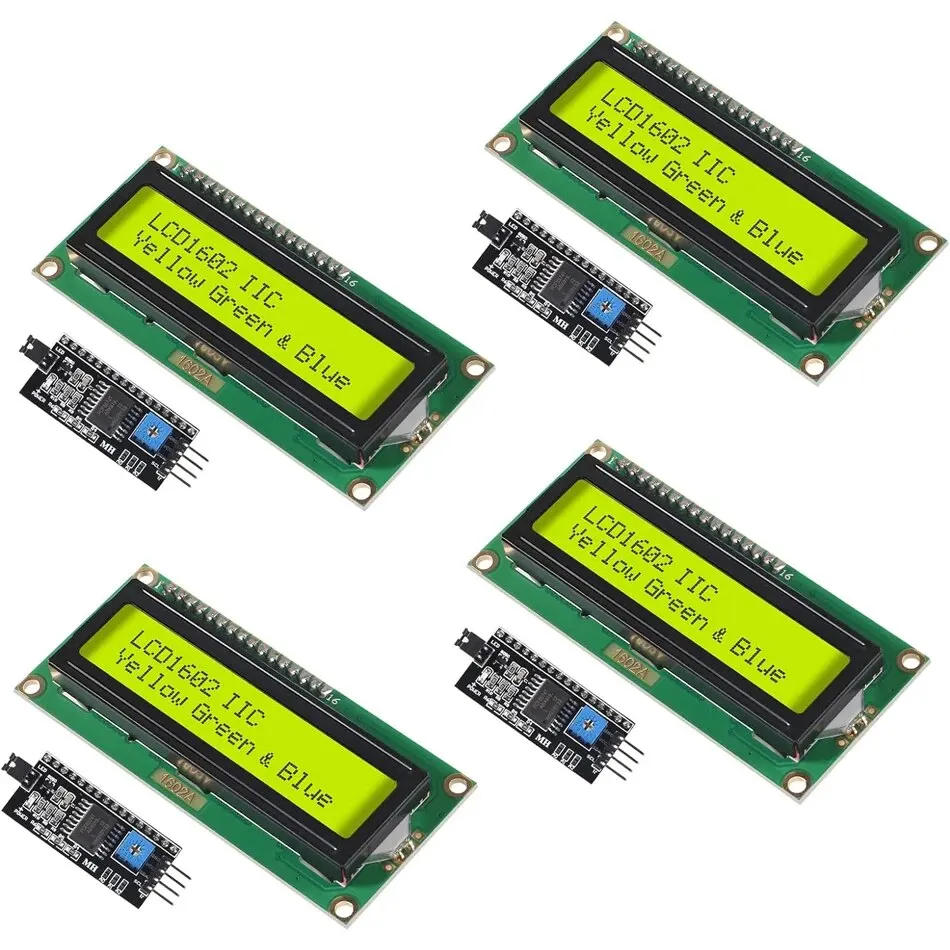

LCD1602 1602 LCD Module Blue/Green Screen 16×2 Character LCD Display with IIC I2C Serial Interface Adapter Module for Arduino

LCD1602 1602 LCD Module Blue/Green Screen 16×2 Character LCD Display with IIC I2C Serial Interface Adapter Module for Arduino

Features:

• Components: blue LCD display with i2c serial interface backpack; LCD screen can display 2-lines x 16-characters; The i2c LCD adapter built-in industry standard equivalent LCD controller

• Default Address: 0 x 27 for PCF8574T chip; 0 x 3F for PCF8574AT chip; Please kindly check the chip of the i2c interface; ( Please remember to download the I2C library on GitHub before uploading the code to the control board)

• Compatibility: 1602 icd display with I2C serial interface is compatible with for Arduino and Raspberry pi; Working voltage: 5V; To come with a potentiometer, which is applied to adjust backlight and contrast; How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5

• Application: LCD module is applied to display letters, characters, numbers, real time clock and temperature

• Display function: 1602 icd display with I2C serial interface can be applied to display real time clock, temperature, humidity and so on; (A potentiometer is also necessary to adjust the contrast; Working Voltage: Only 5V )

Specification:

Display: 2-lines x 16-characters

Four Pin Definition: GND, VCC, SDA, SCL

Default I2C bus address: 0 x 3F for PCF8574AT chip, 0 x 27 for PCF8574T chip

Working voltage: 5V

Adjust Contrast: Potentiometer

Adjust Backlight: Jumper

Package included:

1 x LCD display blue/green

1 x I2 C serial interface

1. Key away from Fire

2. Due to includeing small parts, please keep away from Children under Three.

3. Please leave 5 star feedback if you're satisfied with our products and service, we will appreciate it

4. If the products you received was damaged or any more question, please feel free to contact us.
