3650 motor used for 1/10 Car
3650-2300KVÂ Specifications:
Motor Specifications:
3650 2300KV Motor
Watts: 900W
Max voltage: <22V
Max Amps: 41A
KV(RPM/Volt): 2300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug

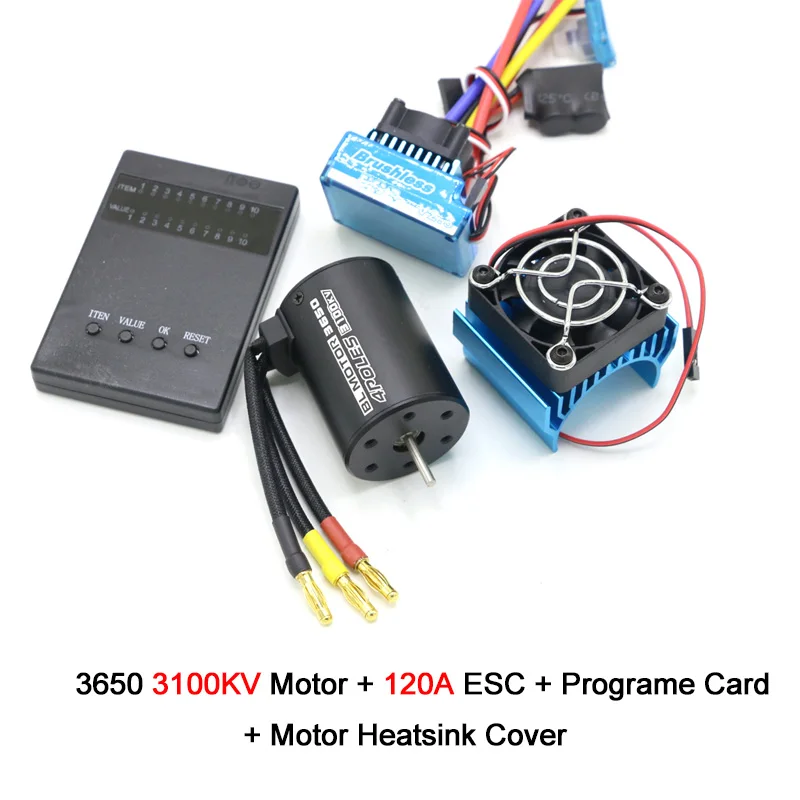

3650-3100kv Specifications:
Watts: 900W
Max voltage: <16V
Max Amps: 56A
KV(RPM/Volt): 3100KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
3650-3900kv Specifications:
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 3900KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Outer Shaft diameter: 3.175mm
Inner Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug

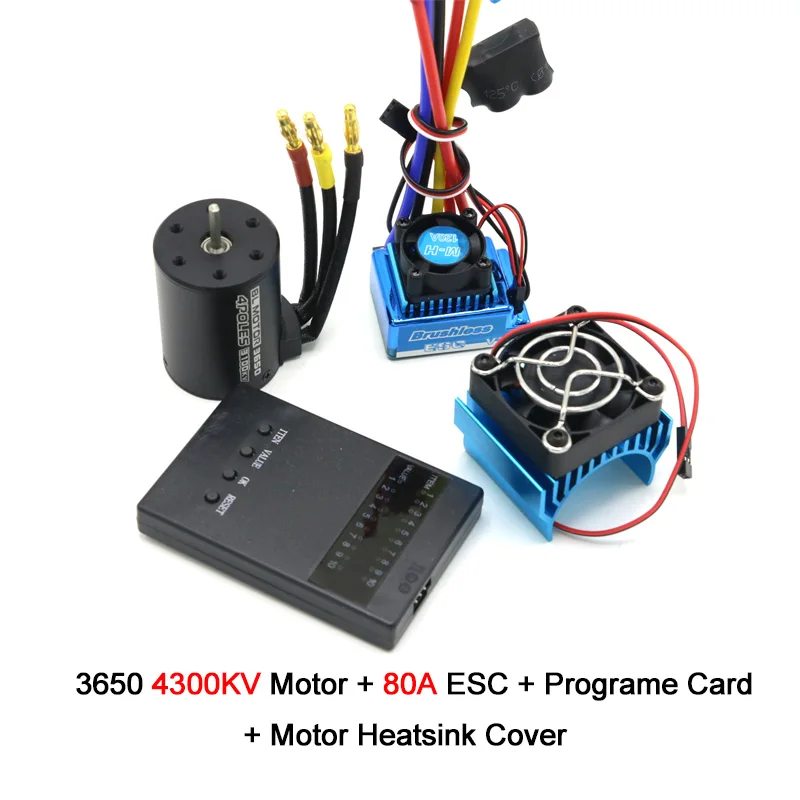

3650 4300kv motor  Specifications:( only support 2s battery )
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 4300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Outer Shaft diameter: 3.175mm
Inner Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug
3650 5200KV Motor( only support 2s battery )
Watts:Â 900W
Max Voltage: <9.6V
Max Amps: 94A
Rotor Poles: 4
KV(RPM/Volt):Â 5200KV
Max RPM: 50000
Length:Â 50mm
Diameters: 36mm with fins
Shaft diameter: 3.175mm
Length of Extend Shaft: 15mm
Plug Type: 4mm golden banana plug
45A ESC Specification:
Continuous Current: 45A
Burst Current: 180A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC Output: 5.8V / 3A
Power Supply Plug: T Plug Male
60A ESC Specifications:
Item Name: Waterproof ESC
Continue Current: 60A
Burst current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
80A ESC Specifications:
Continue Current: 80A
Burst Current: 480A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power Supply Plug: T Plug Male
Motor Plug: 4mm Banana Female Plug
Dimension: Approx. 43 x 31 x 32mm / 1.7 x 1.2 x 1.3inch
120A ESC Specifications:
Continuous Current: 120A
Burst Current: 480A / 10sec
Battery: 2-3s LiPo / 4-12s NiMh
BEC output: 5.3V / 5A(Switch Mode)
Power Supply Plug: T Male
Motor Plug: Female 5mm Bullet Connector
Dimension: Approx. 43 x 31 x 32mm / 1.7 x 1.2 x 1.3inch
