• Latching Push Button Switch :The switch has a latching mechanism that ensures it stays in the on or off position, making it easier to use and more reliable.
• Metal Stainless Steel Shell :The switch is made of high-quality stainless steel, which is durable and resistant to corrosion, ensuring long-lasting use.
• IP65 Waterproof Rating :The switch has an IP65 waterproof rating, which means it can withstand harsh weather conditions and is suitable for use in damp environments.
• Self-Locking Design :The switch has a self-locking design that prevents it from accidentally getting switched off, ensuring that it stays in the on position.
12/16mm latching push button switch metal stainless shell IP65 Waterproof power symbol pattern self-locking 1no 1NC
Features:
• Brand new 12/16mm latching switch; stainless steel shell power symbol pattern, led Blue, voltage: 12-24v

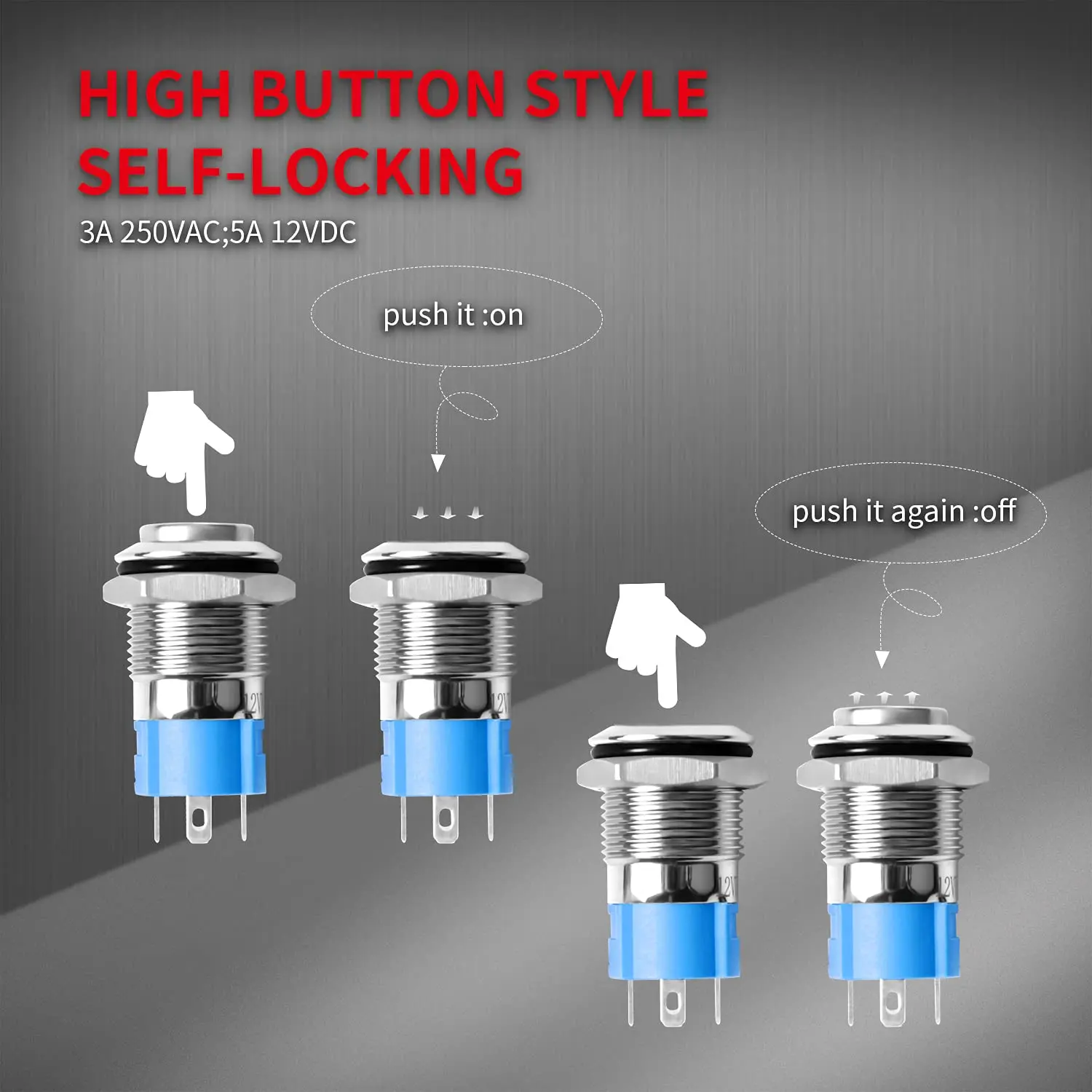

• Latching means self locked: when you push the button,it will stay ON,you can remove your finger,when you push the button again,it will OFF

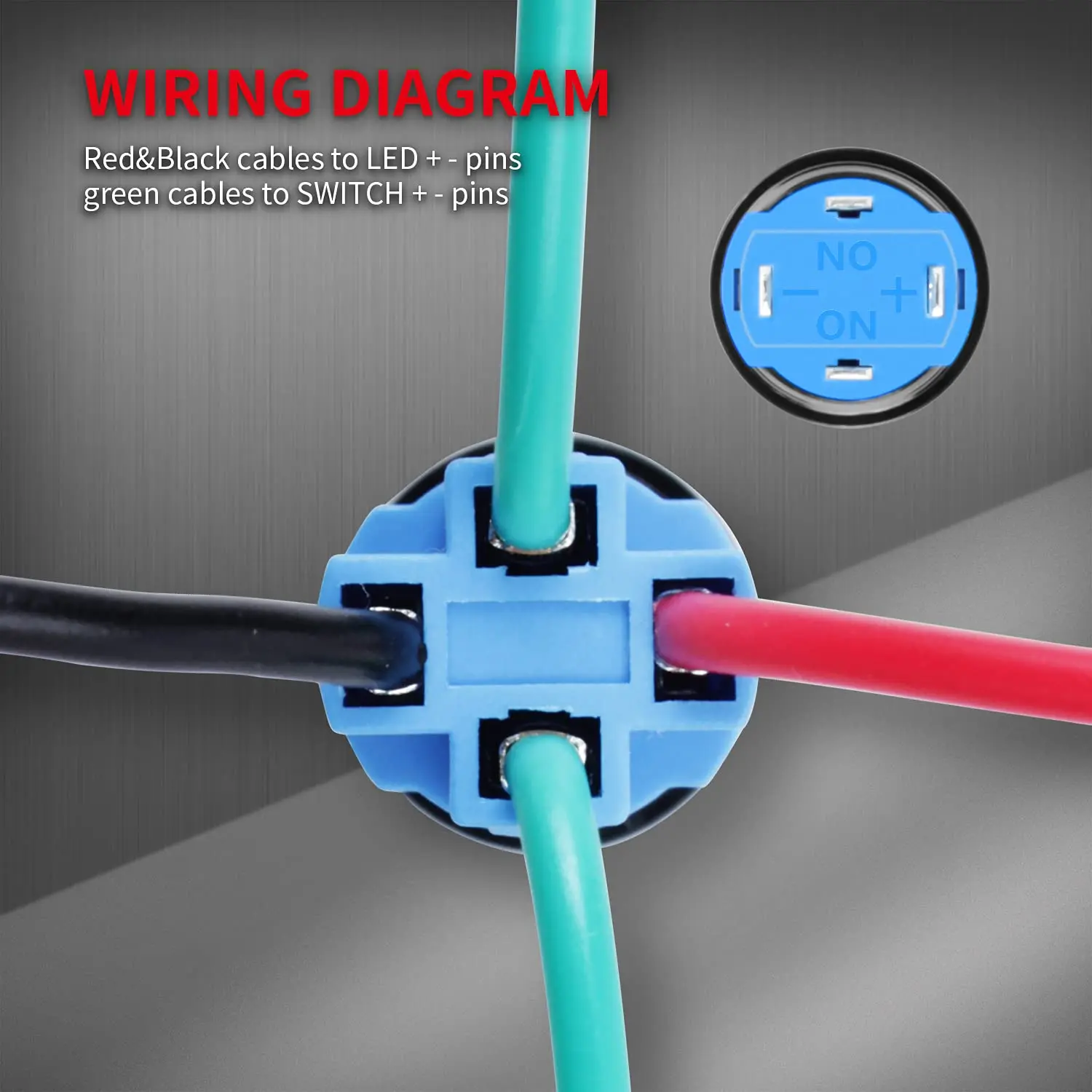

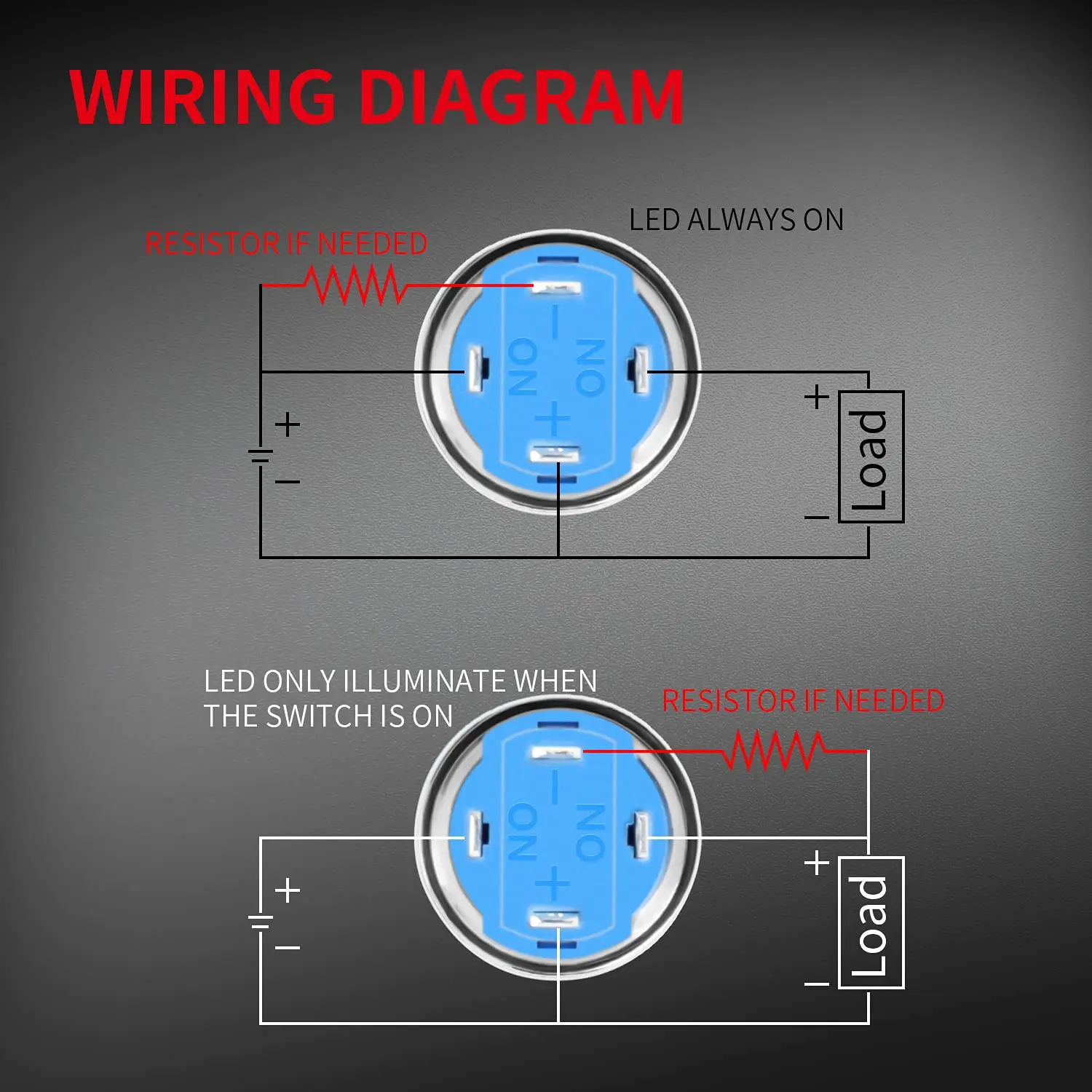

• Contact Configuration: 1NO1NC

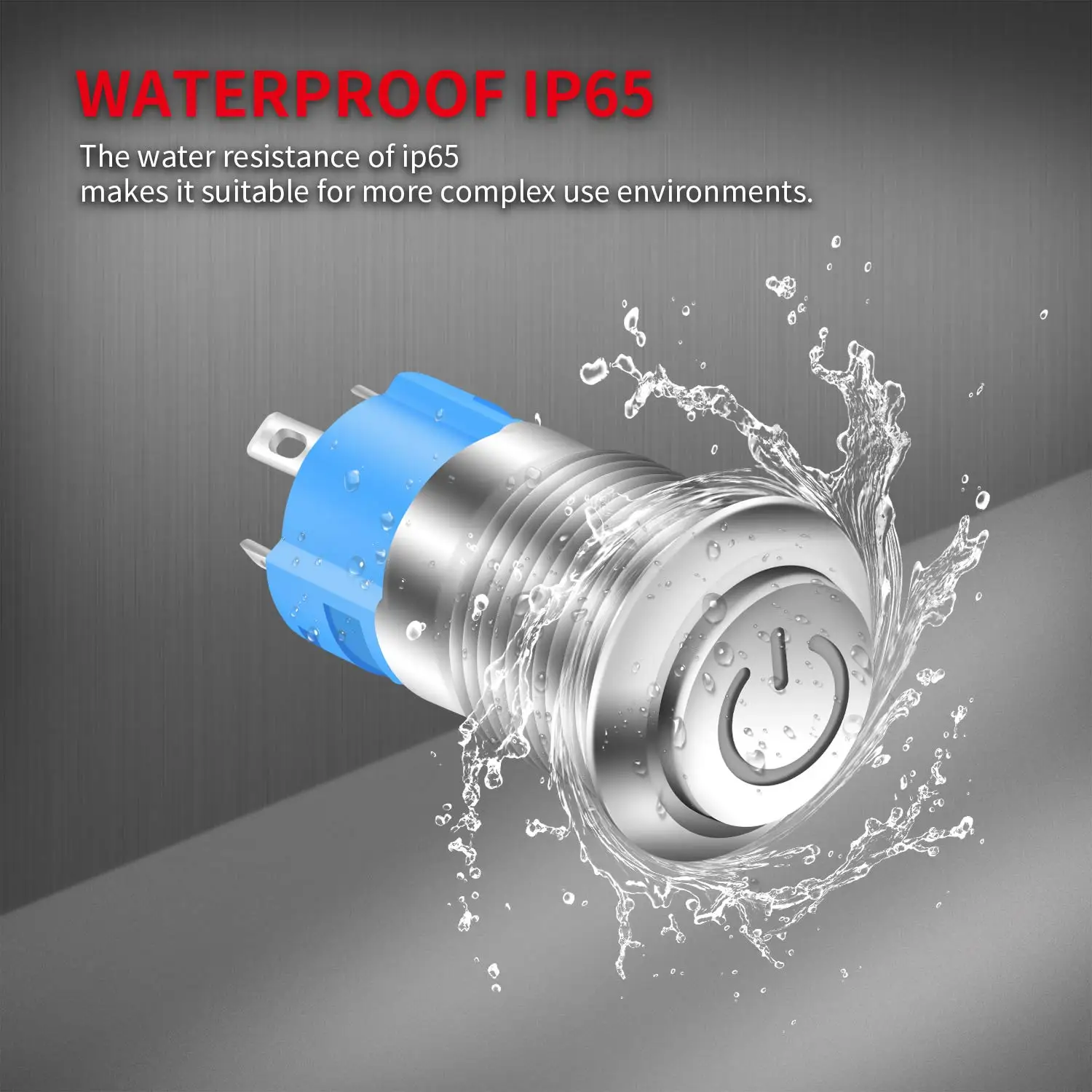

• IP65 Waterproof grade (But do not put the tail of the button into the water)
• Electrical life: 200 thousand times. Mechanical life: 1,000,000 cycles
Specification:

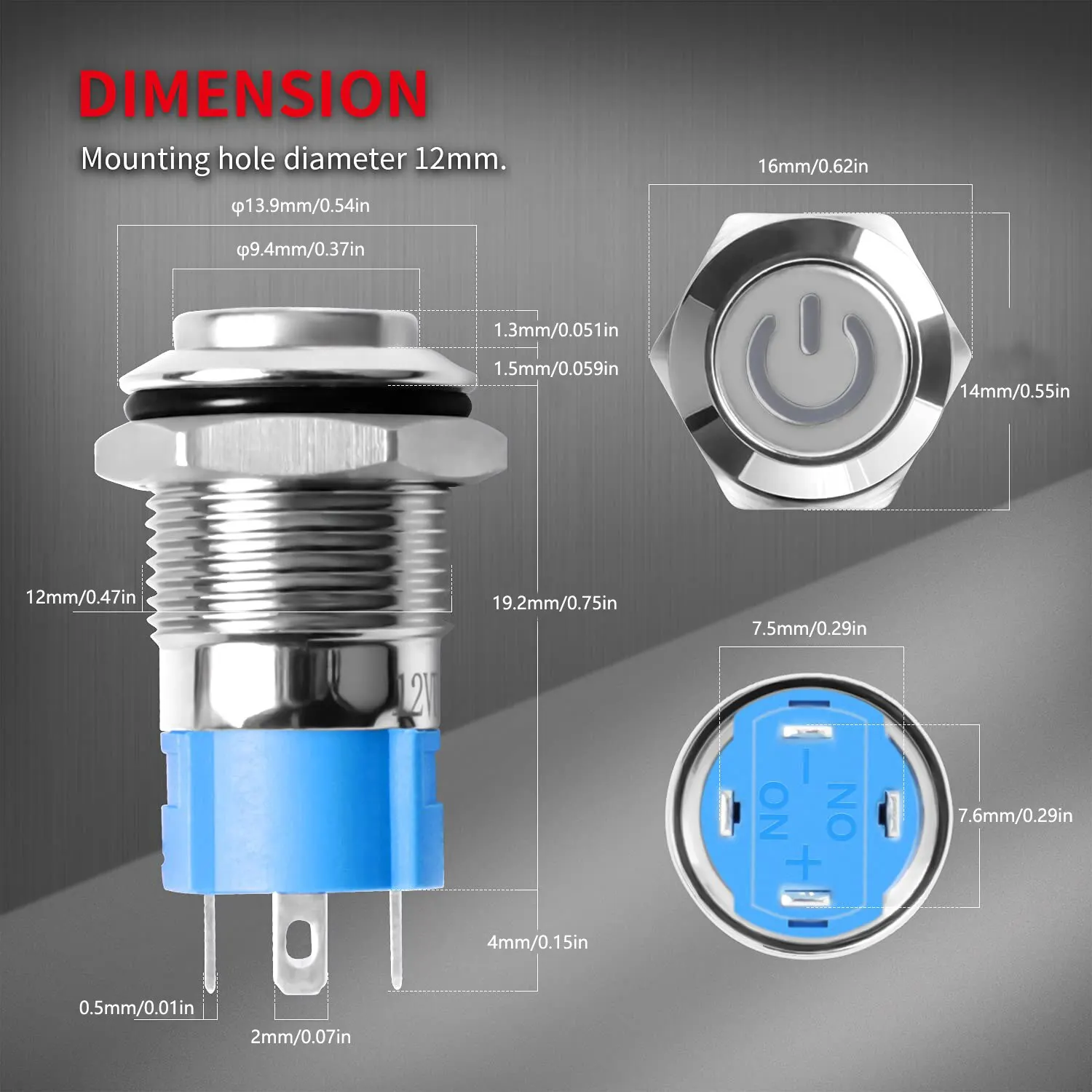

Mounting Cut Hole: 12/16mm
Switch rating: 3A,12V-24V AC/DC
LED Pattern: Power Symbol Indicator
Package included:
1X12/16MM White/Red/Green Latching Push Button Switch
1. Key away from Fire
2. Due to includeing small parts, please keep away from Children under Three.
3. Please leave 5 star feedback if you’re satisfied with our products and service, we will appreciate it
4. If the products you received was damaged or any more question, please feel free to contact us.
